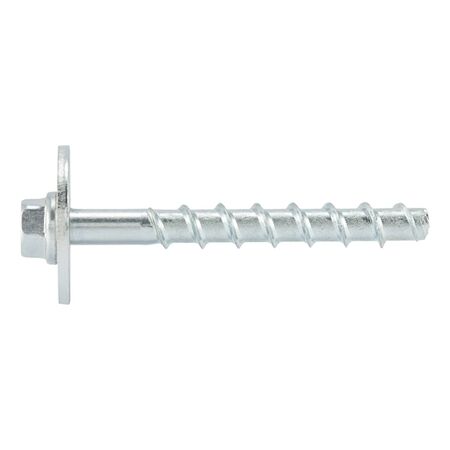

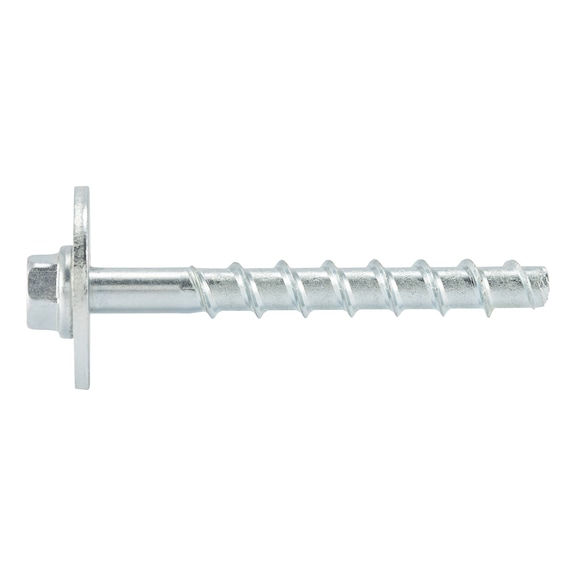

Concrete Screw with Hexagon Head | 10mm Anchor Size | Zinc Plated Steel | @Pack of 15 | by Wurth
Concrete screws with hexagon head and large disc are perfect for securely mounting wood structures in concrete. With a 10mm anchor size and zinc-plated steel for corrosion resistance, these screws offer high load capacities and efficient mounting. Ideal for both cracked and uncracked concrete, they ensure reliable performance in various applications, making them a must-have for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 10 mm
- Anchor length: 240 mm
- Attachment heights: 185 mm, 165 mm, 155 mm
- Thread diameter: 12 mm
- Nominal drill-bit diameter: 10.0 mm
- Drill hole depths: 65 mm, 85 mm, 95 mm
- Embedding depths: 55 mm, 75 mm, 85 mm
- External drive: WS15
- Material: Steel
- Surface: Zinc plated
- Washer diameter: 44 mm
- Through-hole diameter in component: 14.0 mm
- Head type: Hexagon head
- Type description: W-BS type S
- Dimensions (H x L x W): 240mm x 240mm x 44mm
- Weight: 0.15 kg
Key Features
- Highest load capacities and efficient mounting
- Large washer as per DIN 440 for wood structure mounting
- Extremely flexible with three anchoring depths
- Fastening adjustable up to twice after installation for alignment
- Very high loads with smallest spacing and edge distance due to low expansion effect
- Very fast and easy assembly, immediately load-bearing
- Zinc-plated steel for corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified professional following the assembly guide to ensure correct anchoring and load capacity.
Applications
- Mounting wood structures in concrete
- Anchoring railings and anchor plates
- Use in reinforced and non-reinforced concrete C20/25 to C50/60
- Suitable for cracked and uncracked concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces need for frequent replacements
- Efficient mounting reduces material waste during installation
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth Concrete Screw with Hexagon Head and Large Disc W-BS/S 15 PCS is available for immediate purchase, ideal for secure mounting in concrete applications.
