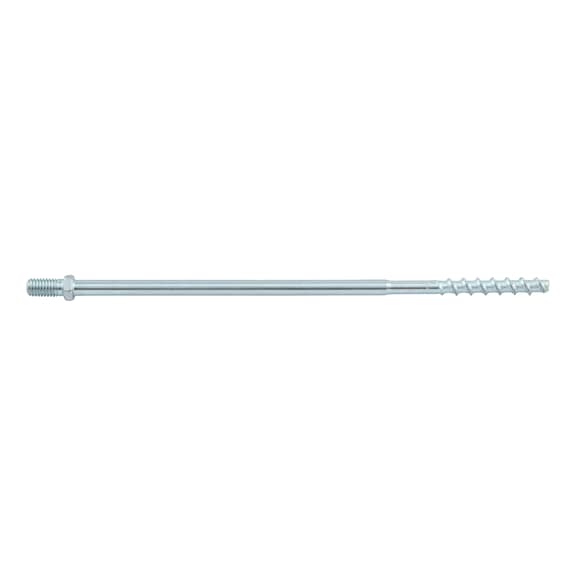

Concrete Screw Stair Bolt LONG W-BS/S | Zinc-Plated Steel | M8 x 16 Connection | @Pack of 100 | by Wurth
Concrete Screw Stair Bolt LONG W-BS/S is designed for secure fastening in concrete and masonry, featuring a corrosion-resistant zinc-plated steel construction and an M8 x 16 connection. Ideal for professional tradespeople, this economical solution allows for flexible anchorage depths and quick installation, making it perfect for applications like fastening pipe clamps and rails through thick insulation materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 6 mm
- Anchor length: 195 mm
- Connection thread: M8 x 16
- Attachment heights: 140 mm, 155 mm, 160 mm
- Thread diameter: 7.5 mm
- Nominal drill-bit diameter: 6.0 mm
- Drill hole depths: 40 mm, 45 mm, 60 mm
- Embedding depths: 35 mm, 40 mm, 55 mm
- External drive: WS10
- Material: Steel
- Surface: Zinc plated
- Through-hole diameter in component: 8.0 mm
- Head type: With connection thread (metric)
- Type description: W-BS type ST
- Dimensions (H x L x W): 195mm x 195mm x 6mm
- Weight: 0.5 kg
Key Features
- Economical and fast fastening solution
- Zinc-plated steel for corrosion resistance
- Up to three effective anchorage depths for flexible application
- Extra-long versions for fastening through insulation materials
- Metric connection thread (M8 x 16) for direct fastening
- High load capacity with very low expansion effect
- Very fast and easy installation with immediate load-bearing capacity
- Fastening can be adjusted up to two times after installation
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct anchorage and load-bearing capacity.
Applications
- Fastening pipe clamps, spacer sleeves, and rails through thick insulation materials
- Anchorage in concrete and masonry
- Suitable for large fixture thicknesses and overhead installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces the need for frequent replacements
- Efficient fastening reduces material waste and installation time
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Concrete Screw Stair Bolt LONG W-BS/S 100 PCS is available now for immediate purchase. Ideal for construction and building applications requiring secure fastening in concrete and masonry.
