Contact Block 1 NC for 22.5mm Operators | Self-Monitoring | 690V Rated by NHP
Contact block with self-monitoring functionality and 690V rated insulation—ideal for industrial control panels and commercial safety systems. Built for enhanced safety, with compatibility for 22.5mm operator devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

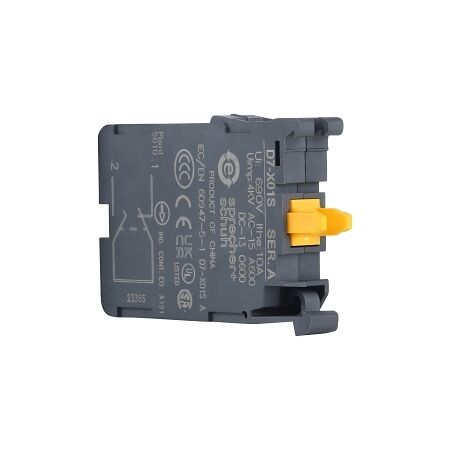

Product Name/Title: Sprecher and Schuh D7 Contact Block 1 NC for 22.5 mm Pushbutton Operators Self Monitoring
Brand: NHP
SKU: D7X01S
Alternatively Known As: D7 Contact Block, Auxiliary Contact Block, 22.5mm Contact Block
Technical Specifications
- Number of Contacts: 1 NC
- Rated Insulation Voltage: 690 V
- Rated Operation Current (AC 15, 120 V): 6 A
- Rated Operation Current (AC 15, 240 V): 3 A
- Rated Operation Current (AC 15, 400 V): 1.8 A
- Rated Operation Current (DC 13, 125 V): 0.55 A
- Rated Operation Current (DC 13, 250 V): 0.27 A
- Minimum Contact Rating Current: 5 mA
- Minimum Contact Rating Voltage: 17 V
- Dimensions (H x L x W): 22.5mm x 50mm x 22.5mm
- Weight: 0.2 kg
Key Features
- Self-monitoring functionality for enhanced safety.
- Designed for 22.5mm operator control devices.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and automation systems
- Commercial: Building management systems and safety controls
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Contact Block 1 NC for 22.5 mm Pushbutton Operators is available now for immediate purchase. Ideal for industrial and commercial applications.
