Copper Bushing 1-5/8 OD x 7/8 ID | ISO/AS 5149.2 Compliant | R-410A & HP-60 Rated | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 100-2614
$11.10 List price: $13.50
+ −
30 Days Return Delivery Options

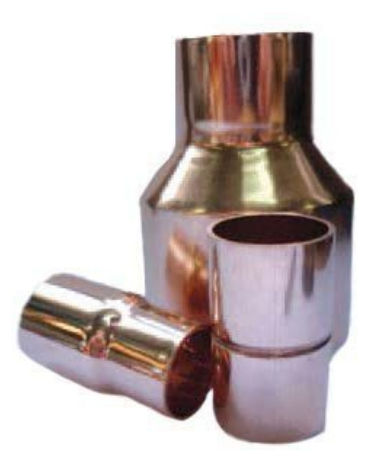

The Copper Bushing 1-5/8 OD x 7/8 ID is designed for HVAC systems requiring reliable copper fittings. Manufactured to exceed ISO/AS 5149.2 standards, it ensures safety and durability in high-pressure applications with R-410A and HP-60 refrigerants. Ideal for refrigeration and air conditioning installations, this bushing supports efficient systems while reducing energy consumption.

Product Name/Title: Copper Bushing 1-5/8 OD x 7/8 ID | ISO/AS 5149.2 Compliant | R-410A & HP-60 Rated | by Aspen Pumps

Brand: Aspen Pumps

SKU: 100-2614

Alternatively Known As: Copper Bushing, Copper Reducer Bush, Copper Pipe Bush, HVAC Copper Fitting

Technical Specifications
  • Outer Diameter (OD): 1-5/8 inches (41 mm)
  • Inner Diameter (ID): 7/8 inches (22 mm)
  • Suitable for R-410A and HP-60 refrigerants
  • Manufactured to exceed ISO/AS 5149.2 standards
  • Complies with CE and UL standards
  • Manufactured in ISO9001 accredited facility
  • Passed batch verification burst testing
  • Recommended 15% silver solder for brazing in high pressure applications
  • Dimensions (H x L x W): 20mm x 41mm x 41mm
  • Weight: 0.1 kg
Key Features
  • Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
  • Complies with CE and UL certifications
  • Manufactured in an ISO9001 accredited facility
  • Passed rigorous QA including batch verification burst testing
  • Marked for R-410A and HP-60 safety ratings
  • Designed to remove stress and fatigue focus points
Professional Installation Requirements
  • Installation should be performed by suitably qualified tradespeople following AS HB40 methodology. Use 15% silver solder for brazing in R-410A or high pressure systems. Ensure pipework design avoids mechanical and thermal stress.
Applications
  • HVAC systems requiring copper fittings
  • Refrigeration and air conditioning installations
  • High pressure R-410A and HP-60 rated systems
Standards & Compliance
  • AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
  • Durable copper construction reduces need for frequent replacements
  • Supports efficient HVAC systems that reduce energy consumption
Warranty Information

Warranty provided as per Aspen Pumps standard terms and conditions.

Available Now

The Aspen Pumps Copper Bush 1-5/8 OD x 7/8 ID is available for immediate purchase, ideal for HVAC and refrigeration system installations.
