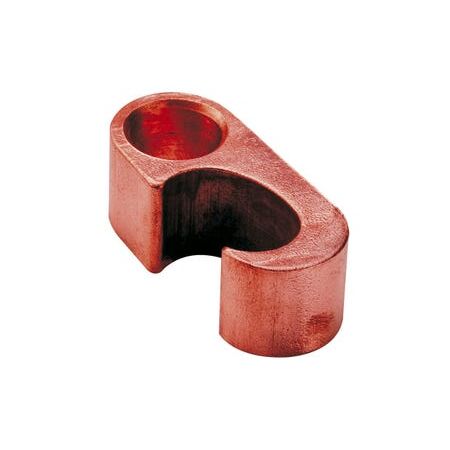

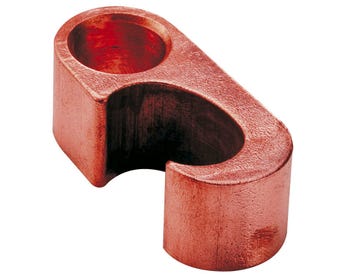

Copper C Connector 50-120mm² Tap 35mm² | Corrosion Resistant & Tamper Proof | Direct Burial by Cabac
The Cabac Copper 'C' Connector is a heavy-duty, corrosion resistant connector designed for high current jointing or tapping of buried copper earthing grids and earth rods, suitable for direct burial and earthing networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CCon 50-120mm2run 35mm2tap
Brand: Cabac
SKU: CAEC35
Alternatively Known As: Copper C Connector, Earth Rod Connector, Copper Earthing Connector, Buried Earth Connector
Technical Specifications
- Material: 99.9%+ high conductivity copper
- Tap size range: 1.5 to 120mm²
- Run conductor size: 35mm²
- Earth rod diameter compatibility: 13 to 15mm
- Pre-loaded with jointing compound
- Crimping method: Oval crimp dies with 13 Tonne tool
- Suitable for direct burial
- Dimensions (H x L x W): 35mm x 120mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity copper
- Pre-loaded with jointing compound for enhanced corrosion resistance
- Tamper proof and suitable for direct burial
- Compatible with standard 13 Tonne crimping tools and oval crimp dies
- Designed for tapping copper conductors from 1.5 to 120mm²
Professional Installation Requirements
- Installation requires professional crimping using a 13 Tonne crimping tool and appropriate oval dies to ensure secure and compliant connections.
Applications
- Buried copper earthing grids
- Earth rods with diameter 13 to 15mm
- Earthing networks requiring corrosion resistant and high current jointing or tapping
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing replacement frequency
- High conductivity copper ensures efficient earthing reducing energy losses
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac CCon 50-120mm2 Run 35mm2 Tap Copper 'C' Connector is available now for immediate purchase. Ideal for electrical earthing and bonding applications requiring durable and corrosion resistant connectors.
