Copper C Connector 6mm² Tap | 99.9% Conductivity | Corrosion Resistant & Tamper Proof by Cabac

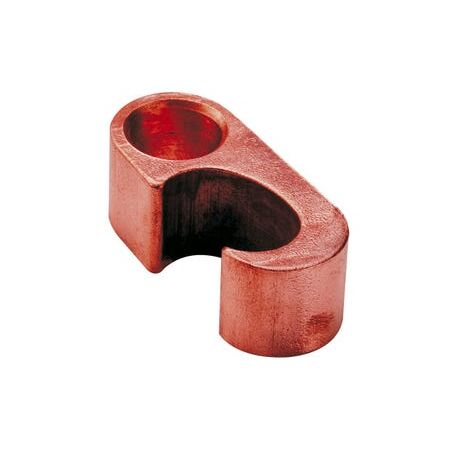

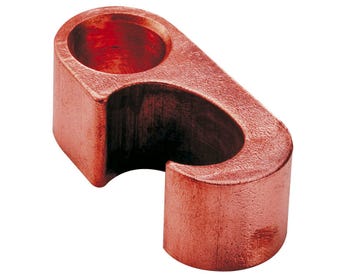

The Cabac Copper 'C' Connector is a heavy duty, corrosion resistant connector designed for high current jointing or tapping of buried copper earthing grids and earth rods, suitable for direct burial and earthing networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CCon.50-120mm2run 6mm2tap
Brand: Cabac
SKU: CAEC6
Alternatively Known As: Copper C Connector, Earth Rod Connector, Earthing C Tap Connector, Copper Earthing Connector
Technical Specifications
- Material: 99.9%+ high conductivity copper
- Tap size range: 1.5 to 120mm
- Run conductor size: 6mm²
- Earth rod diameter compatibility: 13 to 15mm
- Pre-loaded with jointing compound
- Crimping method: Oval crimp dies with 13 Tonne tool
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity copper
- Pre-loaded with jointing compound for enhanced corrosion resistance
- Tamper proof and suitable for direct burial
- Compatible with crimp dies oval in shape and standard 13 Tonne crimping tool
- Designed for tapping copper conductors from 1.5 to 120mm and earth rods 13 to 15mm diameter
Professional Installation Requirements
- Installation requires professional crimping using appropriate oval crimp dies and a 13 Tonne crimping tool to ensure secure and compliant connections.
Applications
- Buried copper earthing grids
- Earth rods with diameter 13 to 15mm
- Earthing networks requiring corrosion resistant and high current jointing or tapping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- High conductivity copper reduces energy loss in earthing systems
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac CCon.50-120mm2run 6mm2tap Copper C Connector is available for immediate purchase, ideal for earthing and bonding applications in electrical installations.
