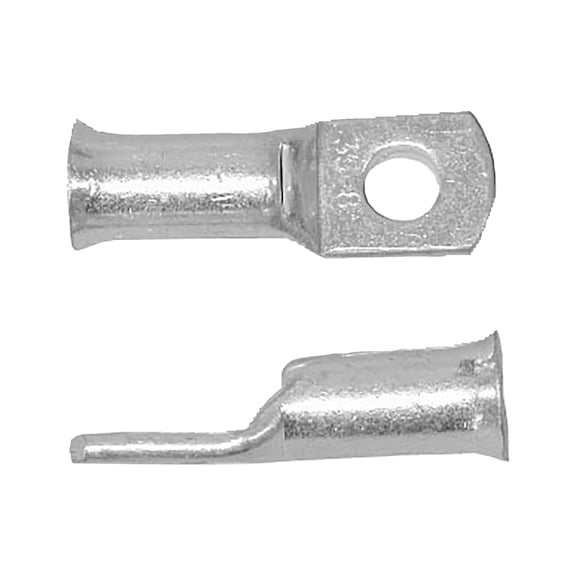

Copper Cable Lugs | Tin Plated for Corrosion Protection | M12 Flange | @Pack of 10 | by Wurth
Copper cable lugs with tin plating provide excellent corrosion protection and durability, making them ideal for connecting electrical cables to appliances, terminals, and batteries. Designed for professional installation, these lugs ensure optimum electrical performance and longer component life, perfect for electricians and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Cable Lugs | Tin Plated for Corrosion Protection | M12 Flange | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 967000012
Alternatively Known As: Copper Cable Lug, Tin Plated Copper Lug, Electrical Cable Connector, Battery Cable Lug
Technical Specifications
- Wire cross section: 16 mm²
- Flange hole: M12

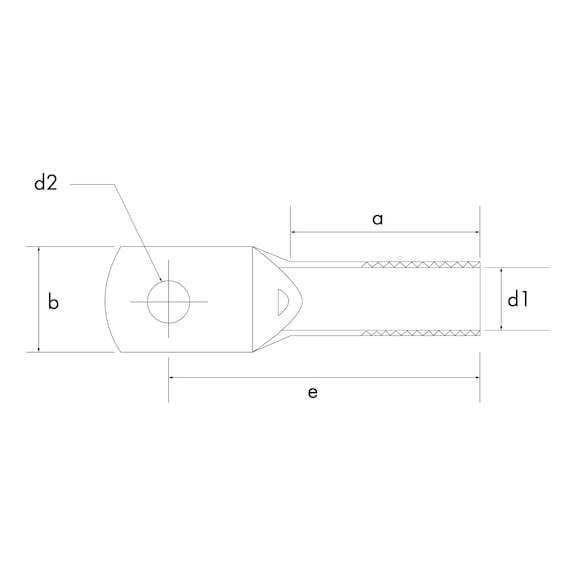

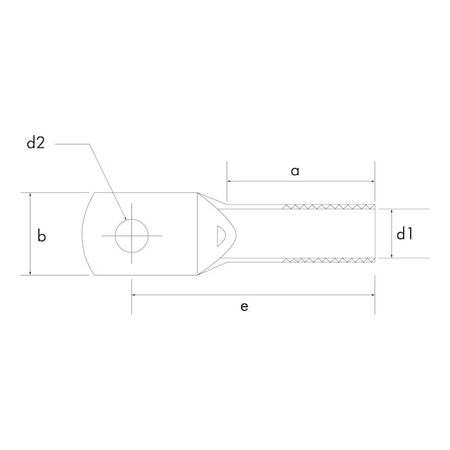

- Wire diameter (d1): 5.5 mm
- Diameter of hole (d2): 13.2 mm
- Distance between sleeve end and centre of hole (e): 32.5 mm
- Sleeve length (a): 20.6 mm
- Width (b): 13.5 mm
- Material: Copper
- Surface: Tin plated
- Dimensions (H x L x W): 20.6mm x 32.5mm x 13.5mm
- Weight: 0.02 kg
Key Features
- Tin plated copper aids in corrosion protection
- More durable connection
- Longer component life
- Optimum electrical performance
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and safety compliance.
Applications
- Connecting electrical cables to appliances
- Connecting cables to terminals
- Connecting cables to surfaces
- Connecting cables to batteries
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Tin plating enhances durability reducing the need for frequent replacements
- Copper is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Copper Cable Lugs TUBCBLLUG CU SN M12 16SMM 10 PCS are available for immediate purchase, ideal for electrical wiring and connection applications.
