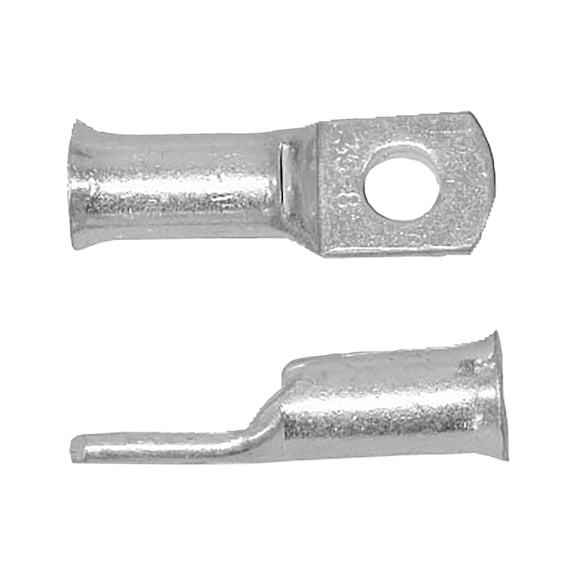

Copper Cable Lugs | Tin Plated | M6 Flange Hole | 16 mm² | @Pack of 10 | by Wurth
Copper cable lugs with a tin-plated finish and M6 flange hole are perfect for ensuring reliable electrical connections. Designed for durability and optimum electrical performance, these lugs are ideal for connecting cables to appliances, terminals, and batteries. With a wire cross-section of 16 mm², they provide enhanced corrosion protection and a longer component life, making them a smart choice for both professionals and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Cable Lugs | Tin Plated | M6 Flange Hole | 16 mm² | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 967000013
Alternatively Known As: Copper Cable Lug, Tin Plated Copper Lug, Electrical Cable Connector, Battery Cable Lug
Technical Specifications
- Wire cross section: 16 mm²
- Flange hole: M6
- Wire diameter (d1): 5.5 mm
- Diameter of hole (d2): 6.4 mm
- Distance between sleeve end and centre of hole (e): 27 mm
- Sleeve length (a): 20.6 mm
- Width (b): 13.5 mm
- Material: Copper
- Surface: Tin plated
- Dimensions (H x L x W): 5mm x 27mm x 13.5mm
- Weight: 0.02 kg
Key Features
- Tin plated copper aids in corrosion protection
- Provides a more durable connection
- Longer component life
- Optimum electrical performance
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and safety.
Applications
- Connecting electrical cables to appliances
- Connecting cables to terminals
- Connecting cables to surfaces
- Connecting cables to batteries
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Copper Cable Lugs TUBCBLLUG CU SN M6 16SMM 10 PCS are available for immediate purchase, ideal for electrical wiring and battery connection applications.
