Copper Double Grip Lug 150mm² | 12mm Stud | High Vibration Resistance | 99.95% Pure Copper by Cabac

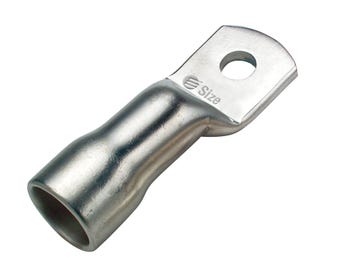

The Cabac Copper Double Grip Lug 150mm2 Cable with 12mm stud is designed for high vibration and critical terminations, made from 99.95% pure copper with a flared barrel for secure crimping onto flexible cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

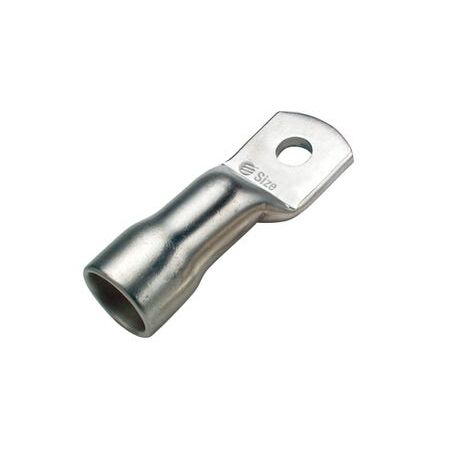

Product Name/Title: Copper Double Grip Lug 150mm2 Cable 12mmstd
Brand: Cabac
SKU: CAL150-12DG
Alternatively Known As: Copper Double Grip Cable Lug, High Vibration Copper Lug, 150mm2 Copper Lug with 12mm Stud
Technical Specifications
- Nominal Cable Size: 150mm²
- ID Barrel Diameter: 16.8mm
- ID Flare Diameter: 25.0mm
- Stud Size: 12mm
- Conductive Material: 99.95% pure copper with oxygen content max 30 ppm
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity 99.95% pure annealed copper
- Flared barrel crimped onto conductor insulation for high vibration resistance
- Crimped with CABAC and MSS Power standard recommended dies
- Tooling interchangeable between CABAC, Utilux and Burndy
Professional Installation Requirements
- Professional installation recommended using standard Australian crimping dies and following guidelines for crimping fine stranded cables.
Applications
- High vibration and critical terminations with flexible cables
- Electrical power connectivity requiring secure cable terminations
Standards & Compliance
- AS/NZS 4325 Part 1 – Copper and Aluminium Conductors
Environmental Benefits
- Made from high purity copper which is recyclable and environmentally sustainable
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Double Grip Lug 150mm2 Cable 12mm Stud is available for immediate purchase, ideal for electrical power connectivity applications requiring high vibration resistance.
