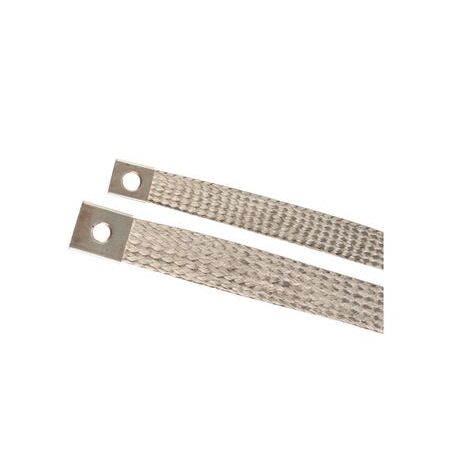

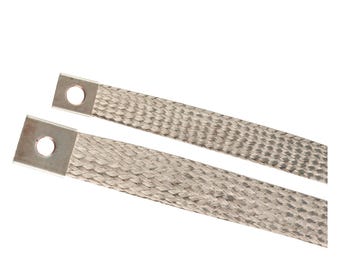

Copper Flexible Braid 450 Amp | 300mm Length | M12 Studs & Tinned Copper by Cabac
The Cabac 450 Amp Copper Flexible Braid 300mm with M12 Studs is a highly flexible electrical lead designed for disconnects, switch handle grounds, and vibration absorption, featuring seamless pure copper ferrules and tinned braid.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 450 Amp Cu Braid 300mm Long M12 Studs.
Brand: Cabac
SKU: CAB450A-300M12
Alternatively Known As: Copper Flexible Braid, Copper Grounding Braid, Electrical Copper Braid, Flexible Copper Link, Copper Braided Connector
Technical Specifications
- Current Rating: 450 Amp nominal (derate by 20% for indoor use)
- Length: 300mm (between centers of first holes)
- Stud Size: M12
- Material: Tinned copper braid with plated copper ferrules
- Ferrule Shape: Rectangular seamless pure copper
- Available with single or double hole ferrules
- Flexible design to absorb vibration and accommodate expansion/contraction
- Dimensions (H x L x W): 5mm x 300mm x 30mm
- Weight: 0.3 kg
Key Features
- Extremely flexible copper braid suitable for various electrical applications
- Seamless pure copper ferrules formed into a rectangular shape on each end
- Standard braids supplied with tinned braid and plated ferrules
- Available with single or double hole options
- Special ends and braid types available upon request
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal performance.
Applications
- Electrical disconnects and switch handle grounds
- Absorbing vibration in electrical systems
- Compensating for linear expansion and contraction in electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from pure copper which is recyclable and sustainable
- Durable design reduces the need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac 450 Amp Copper Flexible Braid 300mm with M12 Studs is available for immediate purchase, ideal for electrical grounding and connection applications.
