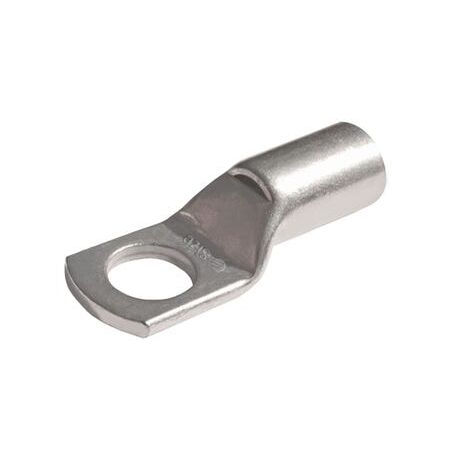

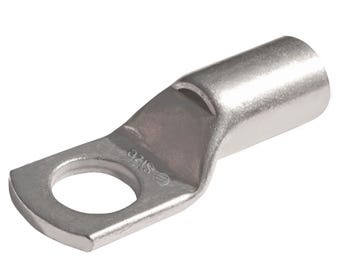

Copper Lug 120mm2 Cable with 20mm Stud | High Conductivity | Corrosion Resistant | Compatible with Standard Tooling by Cabac
Cabac Copper Lug 120mm2 Cable with 20mm Stud is a high conductivity annealed copper crimp lug designed for reliable electrical connections, compliant with AS4325.1 and suitable for general purpose electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 120mm2 Cable 20mm Stud
Brand: Cabac
SKU: CAL120-20
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Terminal Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 5-10 microns tin with lead and antimony
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 120 mm²
- Stranding: 37 strands of 2.03 mm diameter
- Stud size: 20 mm
- ID size: 156 mm
- Recommended torque (Nm): 5mm thread - 5 Nm, 6mm - 9 Nm, 8mm - 22 Nm, 10mm - 44 Nm, 12mm - 77 Nm, 16mm - 190 Nm
- Dimensions (H x L x W): 10mm x 120mm x 40mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for corrosion resistance
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- General purpose crimp lugs for electrical wiring and cable terminations
- Suitable for use in electrical distribution and control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable electroplating extends product life reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 120mm2 Cable 20mm Stud is available for immediate purchase, ideal for electrical power connectivity and cable termination applications.
