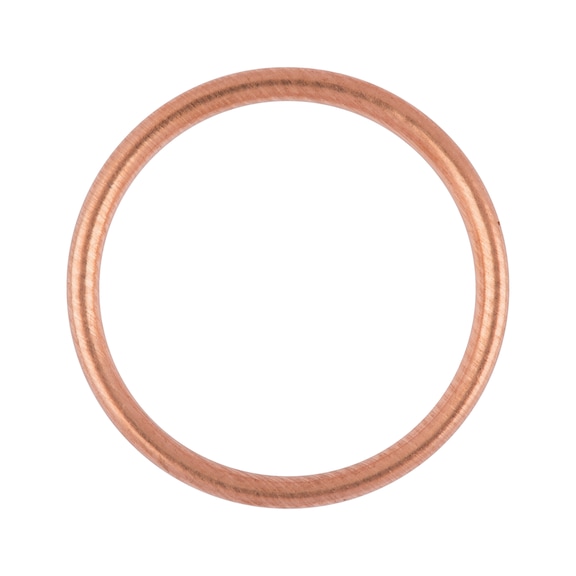

Copper Sealing Ring Shape C | Asbestos-Free | Corrosion Resistant | @Pack of 10 | by Wurth
Copper sealing ring shape C is designed for reliable sealing in automotive and industrial applications. With a corrosion-resistant and asbestos-free construction, this ring softens under preheating to ensure a perfect fit on uneven surfaces. Ideal for use with male threads of 16 x 1.5 mm, it provides a durable solution for various sealing needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Ring Shape C | Asbestos-Free | Corrosion Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 46201620
Alternatively Known As: Copper sealing ring, Copper gasket, Copper washer, Shape C copper seal, Copper crush washer
Technical Specifications
- Outer diameter (d2): 19.9 mm
- Internal diameter (d1): 16.2 mm
- Thickness (h1): 2 mm
- Nominal size: 16 x 20 mm
- Material: Copper
- Surface: Plain
- Form: C
- DIN standard: 7603
- Max temperature resistance: 300 °C
- Suitable for male thread: 16 x 1.5 mm
- Corresponds to original spare part numbers: Mercedes 007 603 016301, VW/Audi N.013 820.3
- Dimensions (H x L x W): 2mm x 20mm x 20mm
- Weight: 0.01 kg
Key Features
- Asbestos-free copper sealing ring
- Shape C design
- Corrosion resistant except in presence of strong acids
- Softens with special preheating to embed into uneven surfaces under pressure
- RoHS-compliant
- Plain surface finish
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper sealing and fitment, especially in automotive or industrial applications.
Applications
- Sealing applications in automotive and machinery where copper rings are required
- Suitable for use with male thread 16 x 1.5 mm
- Ideal for use in environments requiring corrosion-resistant sealing solutions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Asbestos-free material reduces health and environmental hazards
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Copper Filling Seal Shape C 10 PCS is available for immediate purchase, ideal for automotive and industrial sealing applications.
