Copper Switchgear Connector 16mm² | 99.95% Pure Copper | Zinc Plated Steel Collar | -55 to 155°C by Cabac

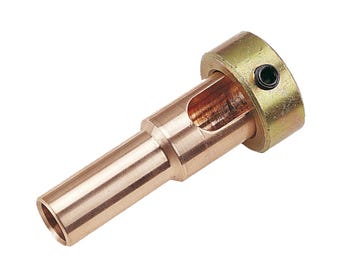

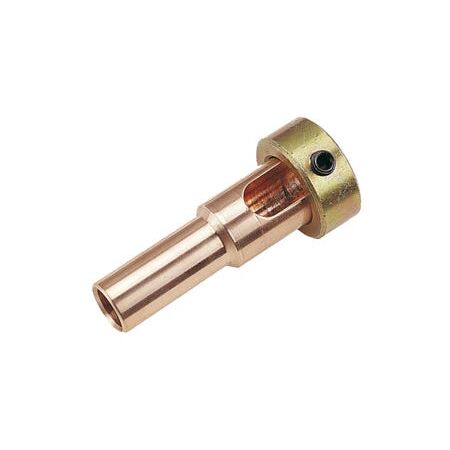

The Cabac Copper Switchgear Connector 16mm2 is designed for terminating copper conductors onto a 12mm copper switchgear stem, featuring a high conductivity copper lug and zinc plated steel clamping collar for reliable electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Switchgear Connector 16mm2
Brand: Cabac
SKU: CSC16/12K
Alternatively Known As: Copper lug connector, Copper switchgear lug, Copper conductor connector, Electrical copper connector, Switchgear copper terminal
Technical Specifications
- Nominal Conductor Size: 16 mm²
- Stranding Number/Diameter: 7 strands of 1.70 mm
- Switchgear Stem Diameter: 12 mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55 to 155 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Plating: Not supplied plated
- Tooling: Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 60mm x 40mm
- Weight: 0.05 kg
Key Features
- Copper lug made from 99.9%+ high conductivity copper
- Steel clamping collar with zinc plating and Allen head grub screw
- Clamping collar design prevents heat generating eddy currents
- Compatible with standard Australian tooling for crimping
- Designed to Australian dimensions
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure connection according to Australian electrical standards.
Applications
- Electrical power connectivity for copper conductors
- Terminating copper conductors onto 12mm copper switchgear stems
- Industrial and commercial electrical installations requiring secure copper connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss and improves electrical efficiency
- Durable materials extend product lifespan, reducing waste
- Compatible with standard tooling reduces need for specialized equipment
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Switchgear Connector 16mm2 is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable copper conductor termination.
