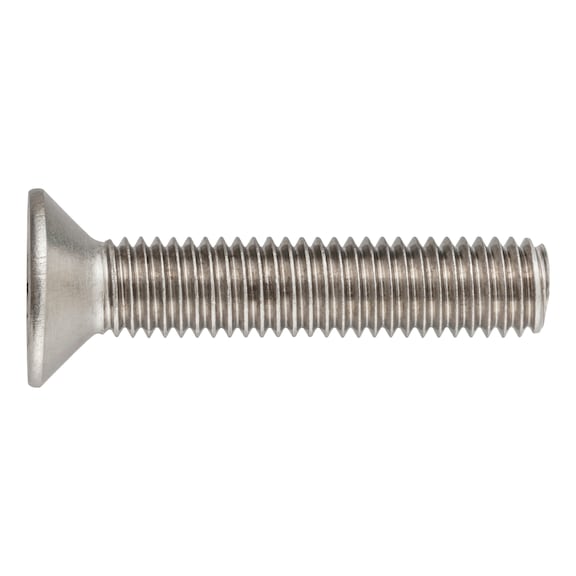

Countersunk Head Screw ISO 10642 | A2-070 Stainless Steel | Hexagon Socket Drive | Flush Mounting | by Wurth
Countersunk head screw ISO 10642 made from A2-070 stainless steel is perfect for mechanical fastening applications requiring a flush surface finish. With a hexagon socket drive for secure tightening, this screw is ideal for use in corrosion-resistant environments, ensuring durability and reliability in light to medium load applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Head Screw ISO 10642 | A2-070 Stainless Steel | Hexagon Socket Drive | Flush Mounting | by Wurth
Brand: Wurth
SKU: 10048
Alternatively Known As: Hex Socket Countersunk Screw, ISO 10642 Countersunk Bolt, Stainless Steel Countersunk Screw, Hexagon Drive Countersunk Screw
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 8 mm
- Head diameter (dk): 7.96 mm
- Head height (k1): 2.48 mm
- Internal drive (s1): HS2.5
- Standards: ISO 10642
- Material: Stainless steel A2
- Property class: 070
- Surface: Plain
- Head type: Countersunk head
- Drive type: Hexagon socket
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- Dimensions (H x L x W): 2.48mm x 8mm x 7.96mm
- Weight: 0.005 kg
Key Features
- Countersunk head geometry for flush mounting
- Hexagon socket drive for secure tightening
- Made from stainless steel A2 with property class 070
- Complies with ISO 10642 standard
- Full metric thread design
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct torque and secure fastening.
Applications
- General mechanical fastening requiring flush surface finish
- Use in corrosion-resistant environments due to stainless steel material
- Suitable for light to medium load applications where countersunk head is needed
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel which is recyclable and corrosion resistant, reducing replacement frequency
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for mechanical fastening applications requiring corrosion resistance and flush mounting.
