Countersunk Head Timber Screw | Full-Thread Design | High Load Capacity | @Pack of 50 | by Wurth
The ASSY®plus FT countersunk head timber screw is designed for timber construction, featuring a full-thread design and high load capacity. Ideal for structural reinforcements and carpentry, this screw ensures optimal performance with its plastic non-friction coating for easy screwing. Perfect for professional installations, it complies with AS/NZS 1170 standards, making it a reliable choice for various wood applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Head Timber Screw | Full-Thread Design | High Load Capacity | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 165410120
Alternatively Known As: Countersunk timber screw, Structural wood screw, Full-thread wood screw, ASSY plus FT screw, Wood construction screw
Technical Specifications

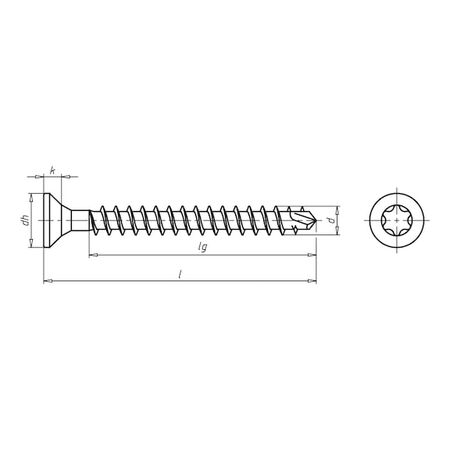

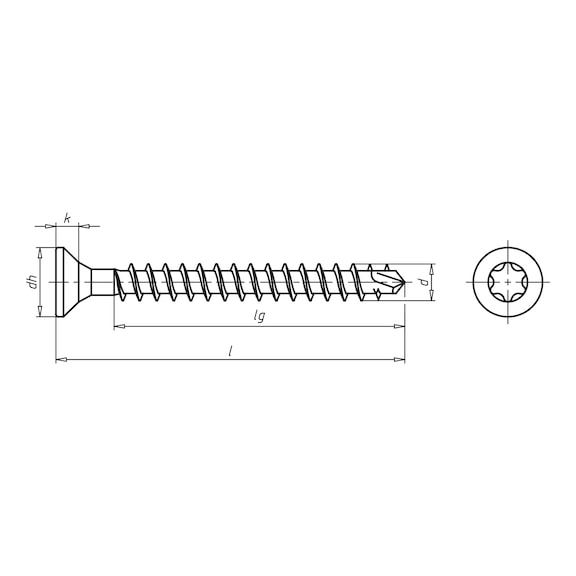

- Dimensions (H x L x W): 6.5mm x 120mm x 18.5mm
- Weight: 0.045 kg
Key Features

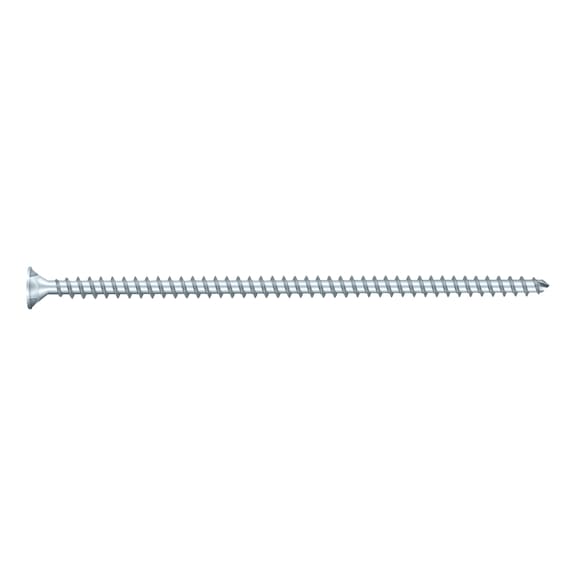

- Full-thread wood screw with drilling tip
- Countersunk head ideal for lateral compression reinforcements and metal connections
- Very high load capacity
- Very small edge distances permitted (as pre-drilled)
- Pre-drilling option permitted
- Screw-in angle from 0° to 90°
- Approval ETA-11/0190 for hardwood, KERTO/LVL, board plywood and other wooden materials
- Plastic non-friction coating for easy screwing and reduced torque
- High-strength hardened steel, zinc plated surface
- Symmetrical full thread for high load-bearing capacity
- Recommended to combine with angled washer 45°AW® drive for enhanced force transmission and optimal centring
Professional Installation Requirements
- Professional installation recommended for structural applications to ensure compliance with building standards and optimal performance.

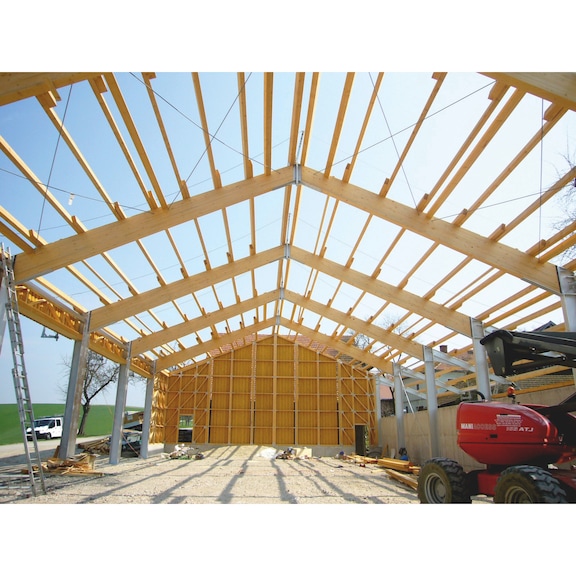

Applications
- Timber construction
- Carpentry
- Timber house and element construction
- Structural reinforcements (lateral compression and lateral tensile) for beams
- Static connection of a second wooden cross-section
- Wooden/concrete composite floors
- Metal wood connections
- On rafter insulation
- Roof
- Element construction
- Timber panel construction
- Interior fitting
- Structural woodwork
- Lateral compression reinforcement
- Tensile shear connection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable high-strength steel construction extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth, typically covering manufacturing defects.
Available Now
Wurth ASSY®plus FT countersunk head timber screws 50 PCS are available for immediate purchase, ideal for timber construction and structural reinforcement applications.
