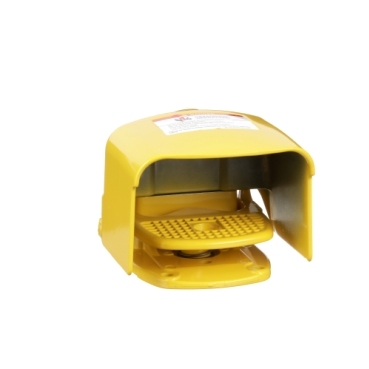

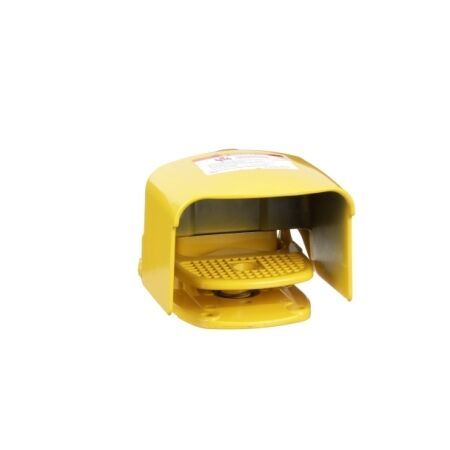

Covered Foot Switch 2NO 2NC | Heavy-Duty Metal Enclosure | IP65 Rated | @Pack of 1 | by Clipsal
The Covered Foot Switch 2NO 2NC is designed for hands-free control in industrial settings, featuring a heavy-duty metal enclosure and IP65 ingress protection. With 2 Normally Open and 2 Normally Closed contacts, it ensures reliable operation for machinery control and automation. Ideal for manufacturing and assembly lines, this foot pedal switch enhances safety and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Covered Foot Switch 2NO 2NC | Heavy-Duty Metal Enclosure | IP65 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH9002AW14M11
Alternatively Known As: industrial foot switch, Clipsal foot pedal switch, SCH9002AW14M11, covered foot switch, 2NO 2NC foot switch, heavy duty foot switch
Technical Specifications
- Contact Configuration: 2NO + 2NC
- Enclosure Material: Metal
- Protective Cover: Yes
- Rated Insulation Voltage: 600V
- Thermal Current: 10A
- Ingress Protection: IP65
- Operating Temperature: -25°C to +70°C
- Mounting: Floor
- Actuator Type: Foot pedal
- Dimensions (H x L x W): 80mm x 260mm x 102mm
- Weight: 1.2 kg
Key Features
- Heavy-duty foot switch with protective cover
- 2 Normally Open (NO) and 2 Normally Closed (NC) contacts
- Rugged metal enclosure for enhanced durability
- Non-slip base for secure operation
- Designed for hands-free control in industrial environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and correct wiring.
Applications
- Industrial machinery control
- Manufacturing automation
- Assembly lines
- Heavy equipment operation
- Safety interlock systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables hands-free operation, reducing energy waste from idle machinery
- Durable construction minimizes replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCH9002AW14M11 Foot Switch Covered 2NO 2NC is available for immediate purchase. Ideal for industrial and manufacturing environments requiring robust, hands-free control solutions.
