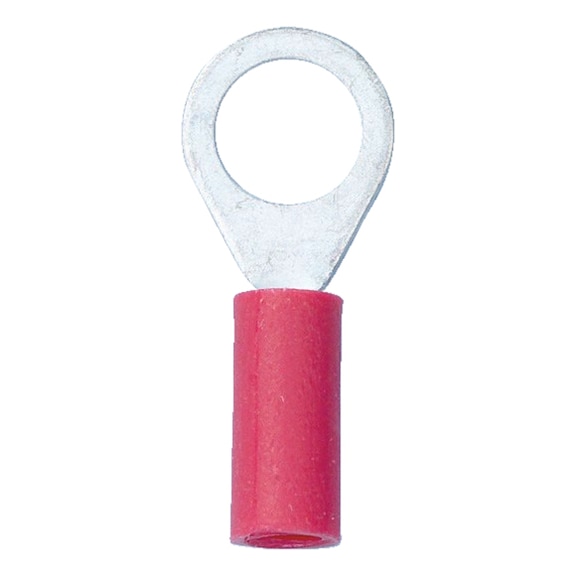

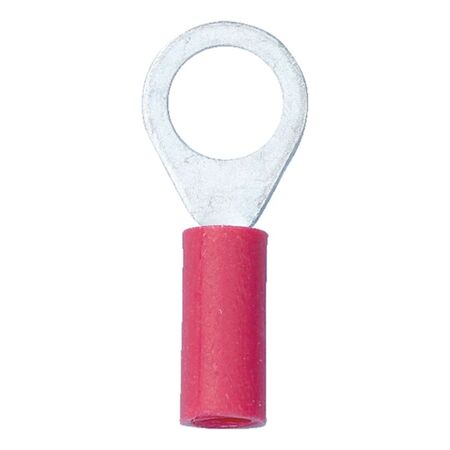

Crimp Cable Lug Ring Connector | PVC Insulated | Tin Plated Copper | M10 Flange Hole | @Pack of 25 | by Wurth
Crimp cable lug ring connector with PVC insulation and tin plated copper surface, designed for secure electrical connections. Rated for a maximum voltage of 600 V/AC and suitable for wire cross sections from 0.5 to 1 mm², this product is perfect for automotive, industrial, and general electrical installations. Ensure reliable performance in temperature conditions ranging from -10 to 75 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Ring Connector | PVC Insulated | Tin Plated Copper | M10 Flange Hole | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 55890411
Alternatively Known As: Crimp ring terminal, cable lug connector, insulated ring terminal, electrical crimp connector
Technical Specifications
- Min./max. wire cross section: 0.5-1 mm²
- Colour: Red
- Flange hole: M10
- Max. nominal voltage: 600 V/AC
- Min./max. temperature conditions: -10 to 75 °C
- Material: Copper
- Surface: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 30mm x 40mm x 10mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Tin plated copper surface for corrosion resistance
- Suitable for wire cross sections from 0.5 to 1 mm²
- Rated for maximum nominal voltage of 600 V/AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections
- Automotive electrical systems
- Industrial machinery wiring
- General electrical installation requiring secure cable termination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Crimp Cable Lug Ring Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
