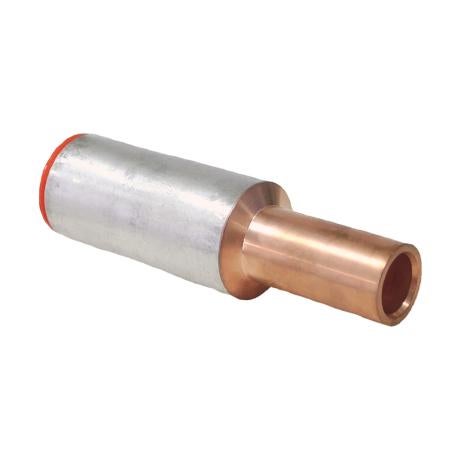

Crimp Link Bimetal Standard 400mm² Aluminium to 400mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
The Crimp Link Bimetal Standard 400mm² Aluminium to 400mm² Copper is designed for reliable electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. Ideal for flexible and stranded copper conductors, this durable connector ensures a strong bond through friction welding, making it perfect for industrial and commercial wiring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Standard 400mm² Aluminium to 400mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA400-400
Alternatively Known As: Bimetallic Crimp Link, Aluminium Copper Crimp Connector, Bi-metallic Electrical Link
Technical Specifications
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve purity: 99.6%
- Copper palm purity: 99.9%
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: Fully annealed including joint
- Joining method: Friction welding
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.15 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- Tensile strength of 110 MPa ensuring durability
- Ductile rating of 28% for flexibility
- Fully annealed final metal state including the joint
- Joining method uses friction welding for strong bond
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors over 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Industrial and commercial electrical wiring requiring bimetallic links
- Use in power distribution and electrical panel installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors over 10mm²
Environmental Benefits
- Use of high purity metals ensures efficient electrical conductivity reducing energy loss
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Link Bimetal Standard 400mm² Aluminium to 400mm² Copper is available for immediate purchase, ideal for electrical and industrial wiring applications.
