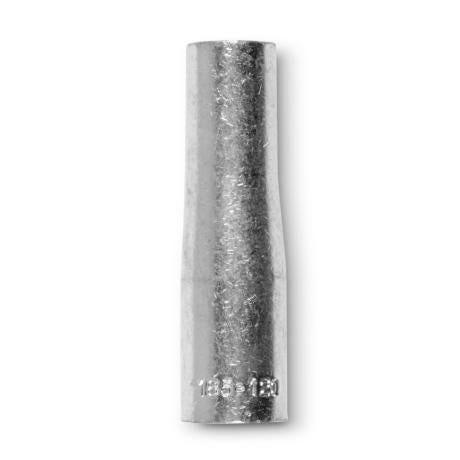

Crimp Link Reducing Non-Insulated Copper 185mm² to 120mm² | Electro-Tin Plated | Chamfered Ends | by Wattmaster
The Crimp Link Reducing Non-Insulated Copper 185mm² to 120mm² is designed for reliable electrical jointing of differing CSA conductors. Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it ensures secure connections in industrial and commercial applications. With a wide operating temperature range of -55°C to +155°C, this crimp link is compatible with standard crimp tools, making it ideal for professional electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 185mm² to 120mm² | Electro-Tin Plated | Chamfered Ends | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR185-120
Alternatively Known As: Copper Crimp Link, Reducing Copper Link, Non-Insulated Copper Crimp Connector
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Reduction: From 185mm² to 120mm²
- Operating Temperature: -55°C to +155°C
- Compatibility: Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Tool Compatibility: Standard 6 tonne, 12 tonne, indent and hex crimp tools
- Dimensions (H x L x W): 10mm x 185mm x 40mm
- Weight: 0.15 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Suitable for use with standard 6 tonne, 12 tonne and indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors
- Suitable for use in electrical installations requiring copper conductor connections
- Industrial and commercial electrical wiring applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 185mm² - 120mm² is available for immediate purchase, ideal for electrical jointing applications in industrial and commercial settings.
