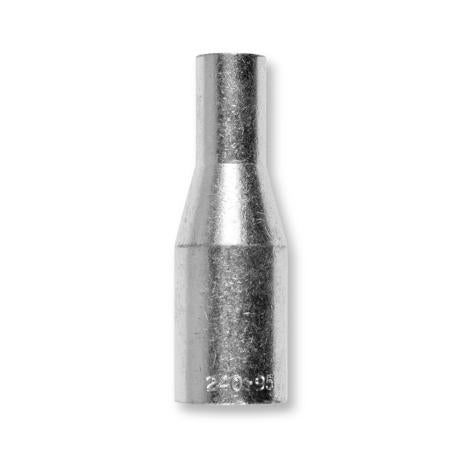

Crimp Link Reducing Non-Insulated Copper 240mm² - 95mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
The Crimp Link Reducing Non-Insulated Copper 240mm² - 95mm² is designed for reliable electrical jointing of differing CSA conductors in industrial and commercial installations. Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it ensures secure connections with stranded and fine stranded conductors. Ideal for power distribution and control panels, this crimp link operates effectively in temperatures ranging from -55°C to +155°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 240mm² - 95mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR240-95
Alternatively Known As: Copper Crimp Link, Reducing Copper Link, Non-Insulated Copper Crimp Connector, Electrical Crimp Link
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Reduction: From 240mm² to 95mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for conductor sizes >10mm²
- Dimensions (H x L x W): 10mm x 120mm x 60mm
- Weight: 0.15 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Suitable for use with standard 6 tonne, 12 tonne and indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
- All sizes sold individually
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors in industrial and commercial electrical installations
- Suitable for use in power distribution and control panels
- Ideal for use in electrical maintenance and repair tasks
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 240mm² - 95mm² is available for immediate purchase, ideal for electrical jointing applications in industrial and commercial settings.
