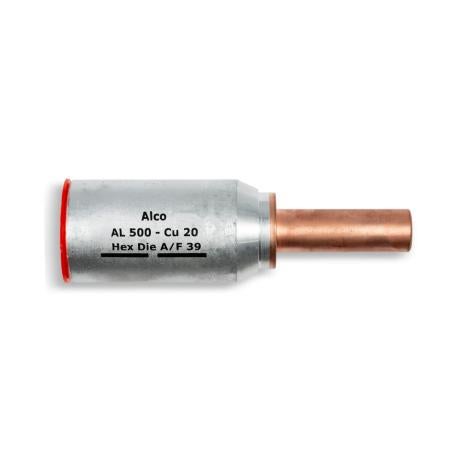

Crimp Lug Bi-Metal | 500mm² Aluminium | 20mm Copper Stalk Diameter | by Wattmaster
Crimp Lug Bi-Metal is designed for reliable electrical connections, featuring a 500mm² aluminum conductor and a 20mm copper stalk diameter. Ideal for electrical termination in industrial and commercial applications, this lug ensures compliance with AS/NZS 4325.1:1995 standards and is compatible with standard Australian hex crimp dies, providing a secure and efficient solution for power distribution and grounding systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal | 500mm² Aluminium | 20mm Copper Stalk Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCLCAS500-20
Alternatively Known As: Bi-metal crimp lug, Aluminum copper crimp lug, Bi-metallic cable lug, Aluminum cable lug with copper stalk
Technical Specifications
- Conductor Size: 500mm² aluminum
- Copper Stalk Diameter: 20mm
- Material: High purity aluminum (99.6%) and ETP copper (99.9%)
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Friction welded bi-metal construction
- Dimensions (H x L x W): 15mm x 120mm x 60mm
- Weight: 0.3 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate installation
- High purity aluminum (99.6%) and ETP copper (99.9%) materials
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Industrial and commercial electrical installations requiring bi-metallic lugs
- Suitable for use in power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for crimp lugs
Environmental Benefits
- Pre-greased barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient conductivity, reducing energy loss
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms and conditions.
Available Now
Available for immediate purchase, ideal for electrical termination in industrial and commercial applications.
