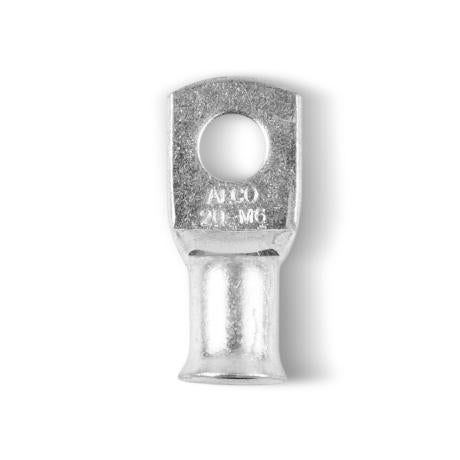

Crimp Lug Copper Bell Mouth Short Barrel | 20mm² Cable Size | M6 Stud Hole | Non-Insulated | by Wattmaster
Crimp Lug Copper Bell Mouth Short Barrel is designed for reliable electrical connections, featuring a 20mm² cable size and M6 stud hole. Made from electro grade copper with an electro tinned finish, it ensures high conductivity and corrosion resistance, making it ideal for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Short Barrel | 20mm² Cable Size | M6 Stud Hole | Non-Insulated | by Wattmaster
Brand: Wattmaster
SKU: ALCLBMSB20M6/25
Alternatively Known As: Copper Crimp Lug, Bell Mouth Crimp Lug, Short Barrel Copper Lug, Non-Insulated Copper Lug
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 20mm²
- Stud Hole Size: M6
- Operating Temperature Range: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimping
- Suitable for stranded to fine stranded copper cable
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring and connections for copper cables
- Industrial and commercial electrical installations
- Suitable for stranded to fine stranded copper cable connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for crimp lugs
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
- Durable copper material supports long-term reuse and recycling
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Short Barrel Non-Insulated 20mm² M6 Stud Hole is available for immediate purchase, ideal for electrical wiring and industrial applications.
