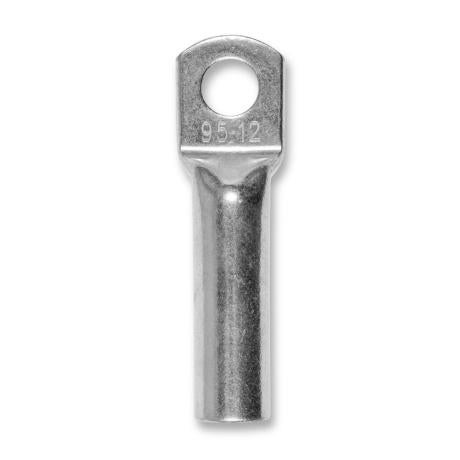

Crimp Lug Copper Long Barrel 95mm² M12 Stud | 99.9% Copper | Electro Tinned Finish | -55°C to +155°C | by Wattmaster
The Crimp Lug Copper Long Barrel 95mm² M12 Stud is designed for reliable electrical connections, featuring 99.9% copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial electrical installations, this lug ensures secure connections in power distribution and grounding systems, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Barrel 95mm² M12 Stud | 99.9% Copper | Electro Tinned Finish | -55°C to +155°C | by Wattmaster
Brand: Wattmaster
SKU: ALCLLB95M12
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Copper Lug, M12 Stud Copper Lug
Technical Specifications
- Material: 99.9% copper with electro tinned finish
- Cable Size: 95mm²
- Stud Size: M12
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 100mm x 20mm
- Weight: 0.1 kg
Key Features
- Non–insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Operating temperature range from -55°C to +155°C
- All sizes can be sold individually
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring and cabling connections
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for crimp lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Lug Copper Long Barrel 95mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
