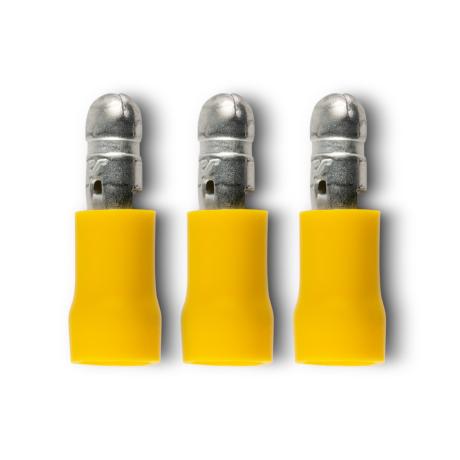

Crimp Terminal Pre-Insulated Bullet 5mm Cable | 4-6mm² Compatibility | 300V Rated | @Each by Wattmaster
Crimp Terminal Pre-Insulated Bullet 5mm Cable is designed for secure electrical connections, compatible with 4-6mm² cables and rated for 300V. Ideal for automotive, marine, and industrial applications, these terminals feature durable three-piece construction and colour-coded PVC insulation for easy identification and installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Terminal Pre-Insulated Bullet 5mm Cable | 4-6mm² Compatibility | 300V Rated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBTY/50
Alternatively Known As: Pre-Insulated Bullet Terminal, Crimp Bullet Connector, Electrical Bullet Terminal, Insulated Bullet Connector
Technical Specifications
- Cable size compatibility: 4-6mm²
- Terminal bullet size: 5mm
- Voltage rating: 300V max
- Operating temperature: +105°C
- Insulation: Colour-coded PVC
- Construction: Three piece pre-insulated double crimp
- Dimensions (H x L x W): 30mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Pre–insulated double crimp terminals for secure connections
- Three piece construction enhances durability and reliability
- Colour–coded PVC insulation for easy identification
- Easy entry design for quick installation
- Rated for 300V maximum voltage
- Operating temperature up to +105°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections in automotive, marine, and industrial applications
- Suitable for use in electrical panels and control systems
- Ideal for secure and insulated cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC insulation helps prevent electrical shorts and reduces risk of fire
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now

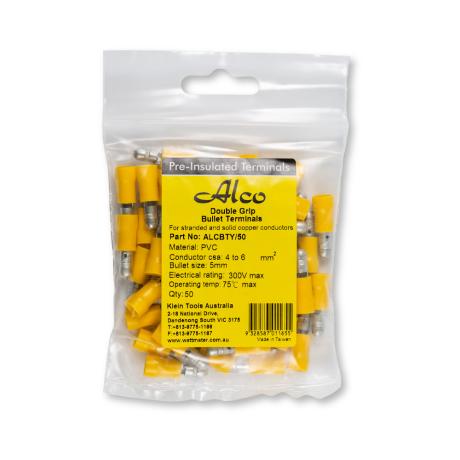

Wattmaster Crimp Terminal Pre-Insulated Bullet 5mm Cable 4-6mm² Yellow 50 Pack is available for immediate purchase, ideal for electrical wiring and connection applications.
