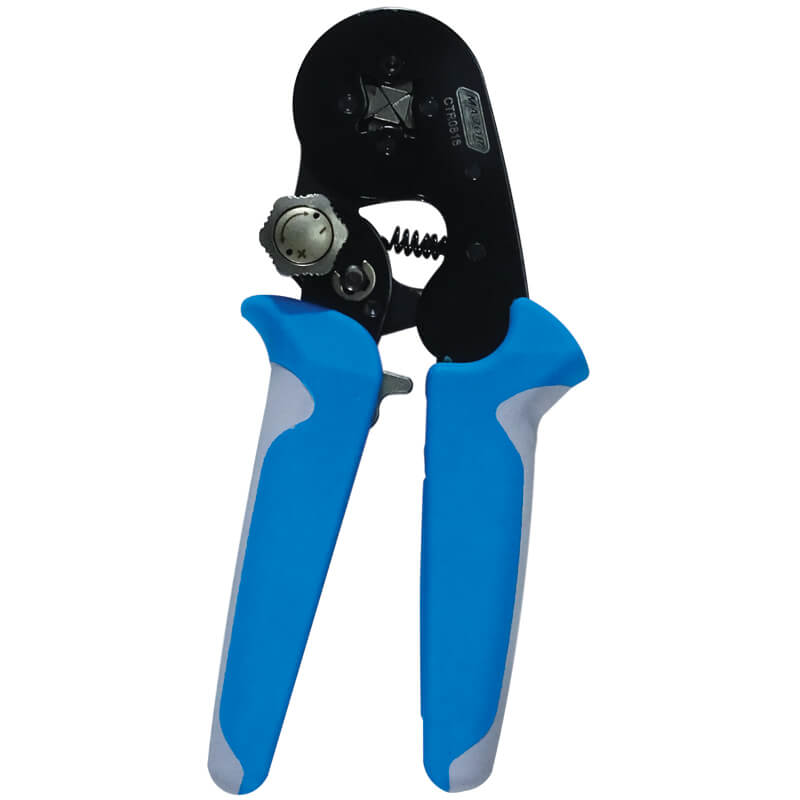

Crimping Tool 0.08-16mm Bootlace MajorTech

BRAND: Major Tech
SKU: CTR0816
$97.50 List price: $129.90
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech crimping tool features 0.08-16mm capacity and square dies for bootlace ferrules. Ideal for ferrule termination in control panels.

Alternatively Known As: Bootlace Ferrule Crimper, Cord-End Terminal Crimping Tool, Self-Adjusting Ferrule Crimper

Technical Specifications
  • Model: CTR0816
  • Crimping Capacity: 0.08–16 mm²
  • Crimp Profile: Square
  • Mechanism: Ratchet with automatic release and manual override
  • Adjustment: Self-adjusting to ferrule size
  • Entry: Side-entry wire positioning
  • Compatibility: Cord-end bootlace terminals and coax terminals
  • Overall Length: 180 mm
  • Head Length: 43 mm
  • Handle Length: 110 mm
  • Dimensions (H x L x W): 43mm x 180mm x 110mm
  • Weight: 0.46 kg
Key Features
  • Covers a broad 0.08–16 mm² bootlace ferrule range
  • Self-adjusting mechanism automatically matches the sleeve size
  • Produces a consistent square crimp profile
  • Ratchet mechanism supports repeatable crimping
  • Automatic release with manual override for controlled operation
  • Side-entry design for convenient conductor positioning
  • Ergonomic handles help reduce operator fatigue
Applications
  • Bootlace ferrule termination in control panels
  • Switchboard and distribution-board wiring
  • Electrical cabinets and industrial control systems
  • Fine-stranded cable preparation for terminal blocks
  • Coaxial terminal crimping applications
Environmental Benefits
  • Reusable hand tool with a durable mechanical design, reducing the need for frequent replacement
  • Supports reliable ferrule termination and may reduce rework, damaged conductors and installation waste
  • Mechanical crimping avoids the use of solder and associated consumable materials
Warranty Information

2-year warranty for tools under Major Tech Australia's product warranty policy, subject to the manufacturer's terms and exclusions.

Available Now

Available through Major Tech and authorised Australian electrical distributors.
