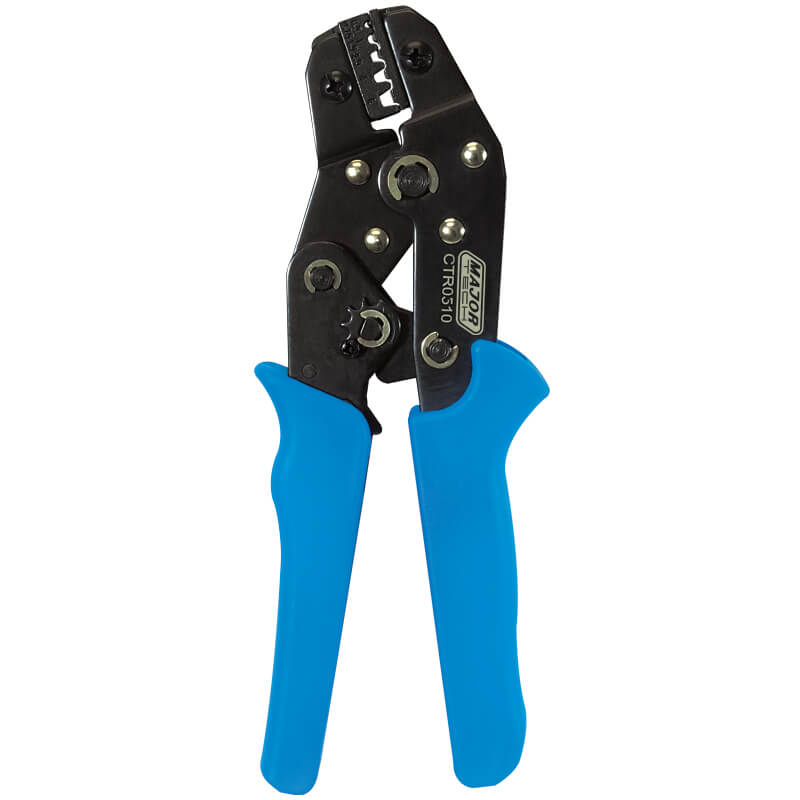

Crimping Tool 0.5-6mm Bootlace MajorTech
MajorTech crimping tool features 0.5-6mm capacity and square dies for bootlace ferrules. Ideal for ferrule termination in control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bootlace Ferrule Crimper, Cord-End Ferrule Crimping Tool, Square-Profile Ferrule Crimper
Technical Specifications
- Product Code: CTR0510
- Crimping Capacity: 0.5–6.0 mm²
- Crimp Profile: Square
- Crimp Mechanism: Fully ratcheting
- Supported Terminal Sizes: 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 and 6.0 mm²
- Applications: Bootlace ferrules and cord-end terminals
- Manufacturer Stated Dimensions: 195 mm length, 35 mm head and 110 mm handle
- Manufacturer Quality References: BS 5750 and ISO 9000 requirements
- Dimensions (H x L x W): 35mm x 195mm x 110mm
- Weight: 0.45 kg
Key Features
- Crimps bootlace ferrules from 0.5 to 6.0 mm²
- Square-die profile for secure ferrule termination
- Fully ratcheting mechanism helps provide consistent crimping pressure
- Combined calibrator assembly for repeatable operation
- Finger guard and non-slip handles
- Suitable for control-panel and electrical wiring termination
Professional Installation Requirements
- No special installation is required for the hand tool. Ferrule termination in fixed electrical installations should be completed by a suitably qualified person in accordance with applicable wiring rules and the terminal manufacturer's instructions.
Applications
- Bootlace ferrule termination in control panels
- Switchboard and automation-panel wiring
- Flexible stranded conductor termination
- Electrical maintenance and assembly work
Standards & Compliance
- AS/NZS 3000:2018 is relevant to electrical installations where ferrules and conductor terminations are used; the manufacturer does not state that the CTR0510 itself is certified to this standard.
Environmental Benefits
- Durable reusable hand-tool construction can reduce replacement and disposal compared with single-use termination equipment
- Metal tool components are generally recyclable at end of service life, subject to local recycling facilities
- Supports reliable terminations that can help reduce rework and material waste in electrical panel assembly
Warranty Information
Major Tech lists tools under a 2-year warranty category, subject to the applicable Australian warranty and returns terms. ([majortech.com.au](https://majortech.com.au/uploads/Warranties_and_Returns_Policy_Australia.pdf?utm_source=openai))
Available Now
Available through Major Tech and authorised Australian electrical and trade-equipment distributors.
