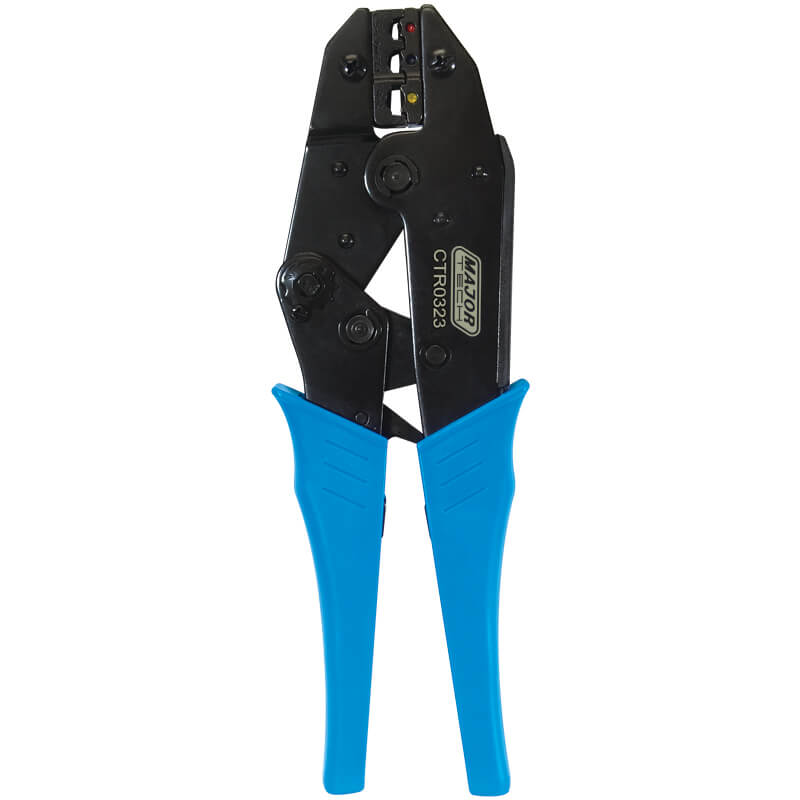

Crimping Tool 0.5-6mm Pre-Insulated MajorTech
MajorTech crimping tool features 0.5-6mm capacity and shaped jaws for pre-insulated terminals. Ideal for cable terminal crimping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Pre-Insulated Terminal Crimper, Insulated Lug Crimping Tool, Ratchet Crimper
Technical Specifications
- Crimping Capacity: 0.5–6.0 mm²
- Red Die Range: 0.5–1.0 mm²
- Blue Die Range: 1.5–2.5 mm²
- Yellow Die Range: 4.0–6.0 mm²
- Mechanism: Ratchet with automatic release and manual override
- Jaws: Professional-quality drop-forged jaws
- Operation: Suitable for left- or right-hand use
- Handle: Insulated hand grips
- Material: High-grade carbon steel
- Dimensions (H x L x W): 38mm x 225mm x 110mm
- Weight: 0.583 kg
Key Features
- Designed for pre-insulated terminals and lugs
- Three colour-coded crimping positions for common terminal sizes
- Ratchet mechanism supports consistent crimping pressure
- Automatic release with manual override
- Suitable for left- and right-handed operation
- Drop-forged jaws for regular trade use
Applications
- Crimping pre-insulated cable terminals
- Electrical wiring and control-panel assembly
- Automotive and vehicle electrical repairs
- HVAC/R, appliance and general maintenance wiring
Standards & Compliance
- AS/NZS 4437:1996 is relevant to solderless crimped connections using pre-insulated crimp barrels; specific tool certification is not stated by MajorTech.
Environmental Benefits
- High-grade steel construction is recyclable at end of service life
- Durable drop-forged jaws support extended product service life and reduce tool replacement waste
Warranty Information
MajorTech warranty policy lists tools under a 2-year warranty, subject to the manufacturer's terms and conditions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
