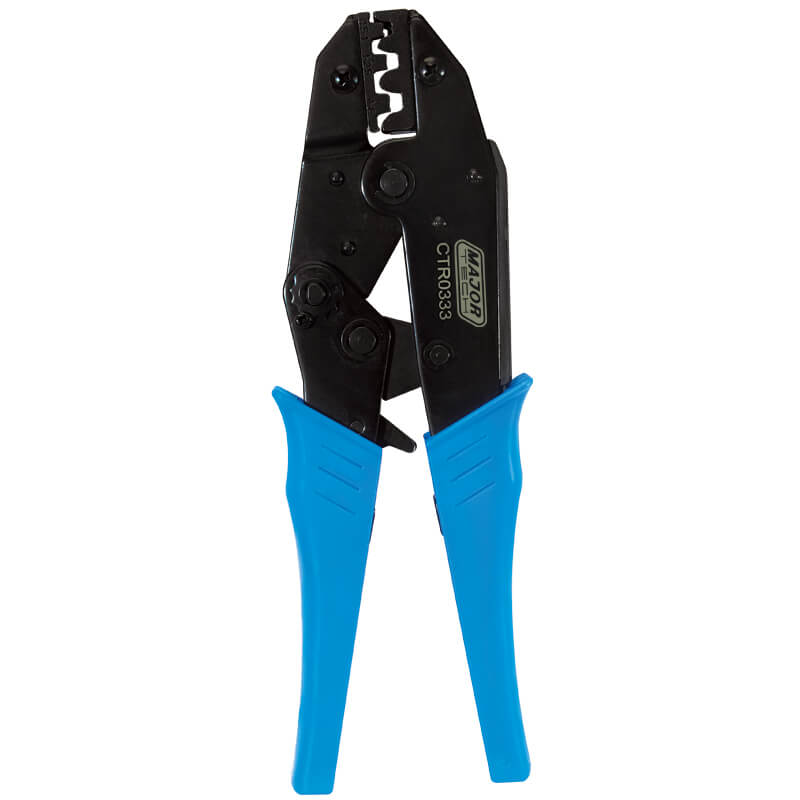

Crimping Tool 1.5-6mm MajorTech
MajorTech crimping tool features 1.5-6mm capacity and shaped jaws for insulated terminals. Ideal for cable terminal crimping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: MajorTech Automotive Crimper, MajorTech CTR0333 Crimping Tool, Ratchet Terminal Crimper
Technical Specifications
- Model: CTR0333
- Crimping Capacity: 1.5 mm², 2.5 mm² and 6.0 mm²
- Terminal Type: Non-insulated terminals
- Tool Type: Ratchet crimping tool
- Jaws: Professional-quality drop-forged jaws
- Release Mechanism: Automatic release with manual override
- Overall Length: 225 mm
- Head Length: 35 mm
- Handle Length: 120 mm
- Dimensions (H x L x W): 35mm x 225mm x 60mm
- Weight: 0.35 kg
Key Features
- Designed for automotive and white goods terminal crimping
- Ratchet mechanism supports consistent crimping pressure
- Automatic release after the crimp cycle is completed
- Manual override for releasing incorrectly positioned terminals
- Drop-forged jaws for repeated workshop use
- Finger guard and non-slip handles for improved control
Applications
- Automotive wiring and terminal repairs
- White goods servicing
- Trailer and low-voltage accessory wiring
- Electrical maintenance and workshop repairs
- Crimping non-insulated terminals from 1.5 mm² to 6.0 mm²
Environmental Benefits
- Durable drop-forged construction can extend service life and reduce tool replacement waste
- Steel tool components are generally recyclable at end of service life
- Enables solderless terminal connections, reducing the need for solder and associated consumables
Warranty Information
MajorTech tools are covered by a 2-year warranty against defects in materials or workmanship, subject to the manufacturer's warranty terms and registration requirements.
Available Now
Available through MajorTech and authorised Australian electrical and trade-equipment distributors.
