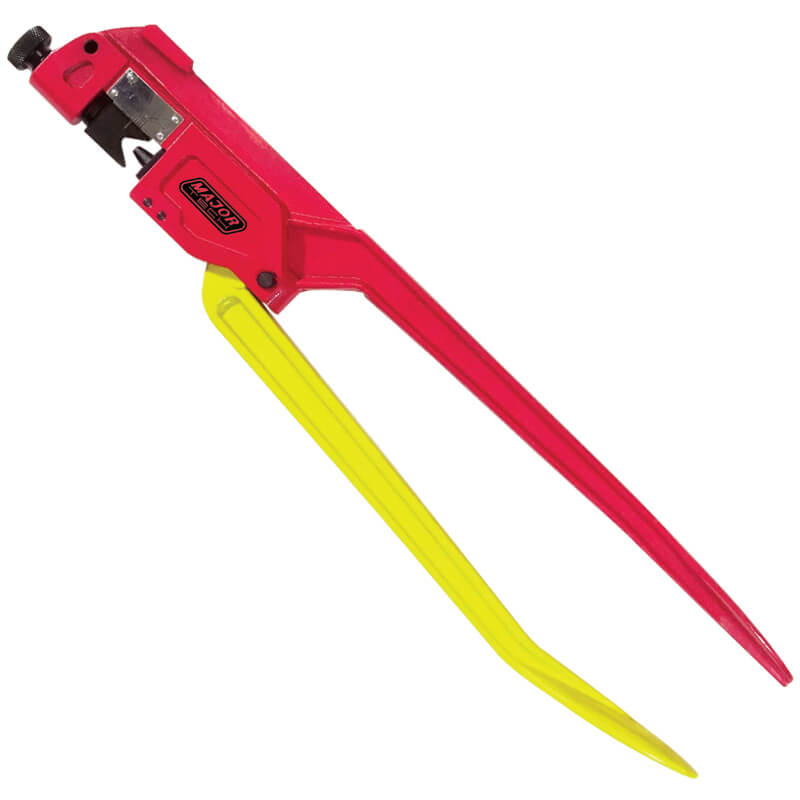

Crimping Tool 10-120mm MajorTech
MajorTech crimping tool features 10-120mm capacity and hardened jaws for cable lugs. Ideal for terminating large cable and connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech cable lug crimper, hex crimping tool, non-insulated terminal crimper, copper cable crimper
Technical Specifications
- Model: CTR03120
- Crimp Type: Hex crimping
- Terminal Type: Non-insulated terminals
- Terminal Sizes: 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm² and 120mm²
- Application: Copper tube cable lugs and connectors
- Mechanism: Full ratchet with pressure adjustment
- Die Selection: Rotating die sets within the tool head
- Operation: Suitable for left- or right-hand operation
- Release: Automatic release with manual override
- Overall Length: 650mm
- Handle Length: 470mm
- Dimensions (H x L x W): 60mm x 650mm x 250mm
- Weight: 4.1 kg
Key Features
- Crimps non-insulated copper cable lugs from 6mm² to 120mm²
- Rotating die sets allow quick selection of the required cable size
- Drop-forged jaws provide a robust crimping structure
- Full ratchet mechanism supports controlled crimping pressure
- Adjustable pre-set crimp pressure
- Automatic release with manual override
- Suitable for terminating large electrical cables and connectors
Professional Installation Requirements
- No specialist installation is required for the tool itself. Cable lug termination should be performed by a suitably qualified electrical tradesperson using cable lugs and crimping procedures appropriate to the cable and installation, in accordance with AS/NZS 3000 and applicable manufacturer instructions.
Applications
- Terminating large copper power cables
- Crimping non-insulated copper tube cable lugs
- Electrical switchboard and distribution work
- Battery, inverter and solar cable termination
- Industrial, commercial and maintenance electrical applications
Environmental Benefits
- Durable drop-forged metal construction can support an extended service life and reduce replacement waste
- Steel and other metal components are recyclable at end of service life
- Manual operation avoids electricity or battery consumption during use
Warranty Information
Two-year Major Tech warranty for tools against manufacturing defects, subject to the manufacturer’s warranty terms and exclusions for misuse, neglect, normal wear and unauthorised alterations.
Available Now
Available through Major Tech and authorised Australian distributors, subject to distributor stock levels.
