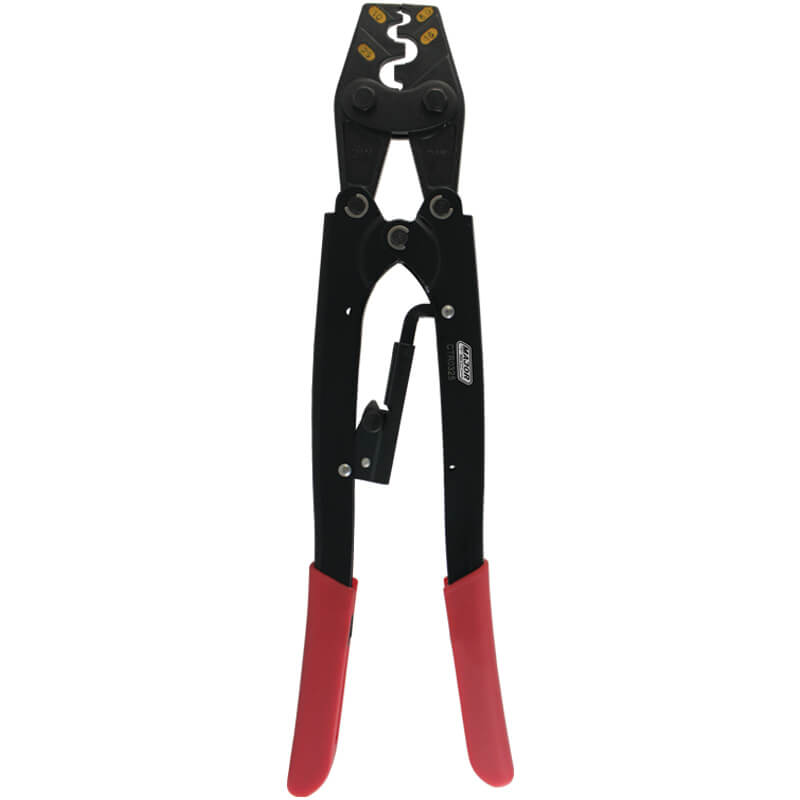

Crimping Tool 6-25mm Non-Insulated MajorTech
MajorTech crimping tool features 6-25mm capacity and hardened jaws for non-insulated terminals. Ideal for cable lug and terminal crimping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 6–25mm² Non-Insulated Ratchet Hex Crimping Tool, Cable Lug Crimper, Terminal Crimping Tool
Technical Specifications
- Model: CTR0525
- Crimping Capacity: 6mm², 10mm², 16mm² and 25mm²
- Crimp Type: Hex crimp
- Terminal Type: Non-insulated terminals and cable lugs
- Jaw Construction: Professional-quality drop-forged jaws
- Operation: Ratchet mechanism with automatic release and manual override
- Handedness: Suitable for left- or right-hand operation
- Overall Length: 345mm
- Head Width: 50mm
- Handle Length: 110mm
- Dimensions (H x L x W): 30mm x 345mm x 130mm
- Weight: 0.82 kg
Key Features
- Designed for non-insulated terminals and cable lugs
- Hexagonal crimp profile for secure terminal connections
- Ratchet mechanism helps maintain consistent crimp pressure
- Professional-quality drop-forged jaws
- Suitable for left- and right-hand operation
- Supports common 6mm² to 25mm² terminal sizes
Applications
- Crimping non-insulated cable lugs
- Electrical cable termination
- Control-panel and switchboard wiring work
- Battery, automotive and industrial cable connections
- HVAC, electrical and communications installation work
Standards & Compliance
- AS/NZS 4437:1996 (R2016) is relevant to solderless crimped connections made with uninsulated or pre-insulated crimp barrels; manufacturer compliance for this tool is not stated
Environmental Benefits
- Durable drop-forged steel construction can support extended service life and reduce replacement waste
- Steel tool components are recyclable at end of service life
- Enables reliable cable termination, helping reduce premature connection replacement caused by poor crimping
Warranty Information
MajorTech tools are covered by a 2-year warranty against eligible manufacturing defects, subject to the manufacturer’s warranty terms and exclusions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
