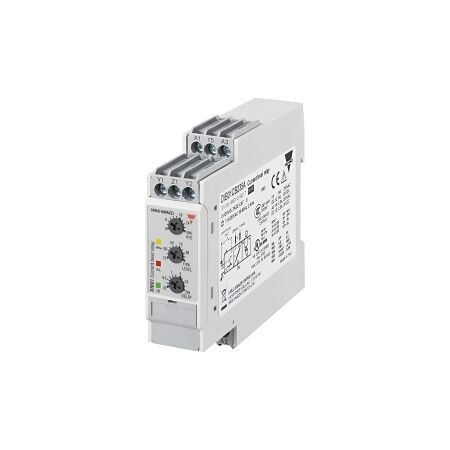

Current Monitoring Relay 10-500mA | 24-48V AC/DC | DIN Rail Mount by NHP
Current monitoring relay with 10-500mA range and 24-48V AC/DC compatibility—ideal for industrial and commercial electrical systems. Built for safety, with DIN rail mounting and adjustable delay for precise control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Current Measuring Range: 0.01-0.5 A
- Rated Frequency: 45-65 Hz
- Rated Control Supply Voltage: 24-48 V AC/DC
- Over Voltage Category: III
- Type of Electric Connection: Screw connection
- Degree of Protection: IP20
- Material Contact: Silver tin-oxide
- Suitable for DIN Rail Mounting: Yes
- Storage Temperature: -30-80 °C
- Dimensions (H x L x W): 83.5mm x 99.5mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Measures current from 10-500mA AC/DC.
- Single-phase under and over current monitoring.
- Adjustable delay on energization time.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Monitoring electrical systems for over and under current conditions.
- Commercial: Ensuring safety in electrical installations.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of damage and energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Monitoring Relay Over/Under Current is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
