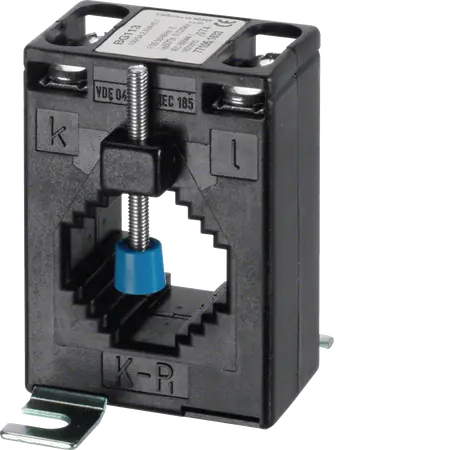

Bar/Cable-through Current Transformer BG 113 100/5A 2,5VA Class 1

Current Transformer 100/5A | 2.5VA Class 1 | Screw Terminal | DIN Rail by Hager

BRAND: :hager

SKU: SRA01005

$65.10 List price: $83.20

+ −

30 Days Return Delivery Options

Current transformer with 100/5A rating and 2.5VA power—ideal for industrial and commercial energy management. Built for precise measurements, with screw terminal connectivity and DIN rail mounting.

Description
Attachments

Product Name/Title: Bar/Cable-through Current Transformer BG 113 100/5A 2,5VA Class 1

Brand: Hager

SKU: SRA01005

Alternatively Known As: Current Transformer, CT, Bar Current Transformer, Cable-through Current Transformer

Technical Specifications

Power: 2.50 VA
Total power loss under IN: 0.70 W
Rated insulation voltage Ui: 3000 V
Frequency: 50 - 60 Hz
Ingress Protection (IP) class: IP10
Max. intensity of primary: 100 A
Max. intensity of secondary: 5 A
Mounting: DIN rail or mounting plate
Dimensions (H x L x W): 70mm x 30mm x 49.5mm
Weight: 0.5 kg

Key Features

Accuracy class 1 for precise measurements.
Screw terminal connectivity for easy installation.
Operating temperature range of -40 to 40 °C.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power monitoring and measurement
Commercial: Energy management systems
General: Electrical installations requiring current transformation

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

RoHS and REACH compliant, contributing to reduced environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Bar/Cable-through Current Transformer BG 113 100/5A 2,5VA Class 1 is available now for immediate purchase. Ideal for industrial and commercial energy management applications.

SRA01005 (SRA01005, 212 Kb) [Download]

reach_declaration_SRA01005.pdf (reach_declaration_SRA01005.pdf, 103 Kb) [Download]

rohs_declaration_SRA01005.pdf (rohs_declaration_SRA01005.pdf, 104 Kb) [Download]

(CURRENTTRANSFORMERS.pdf, 238 Kb) [Download]

(DECLARATION_22_3436_12_22.pdf, 581 Kb) [Download]
