Curved Magnetic Tape | Self-Adhesive | Axial Magnetization | Minimum Bend Radius 2mm | by SICK
Curved magnetic tape with self-adhesive backing and axial magnetization is perfect for industrial automation and sensor positioning. Designed for easy installation, this tape features a minimum bend radius of 2mm and operates effectively in temperatures up to +70 °C. Ideal for robotics, conveyor systems, and magnetic field detection, it ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

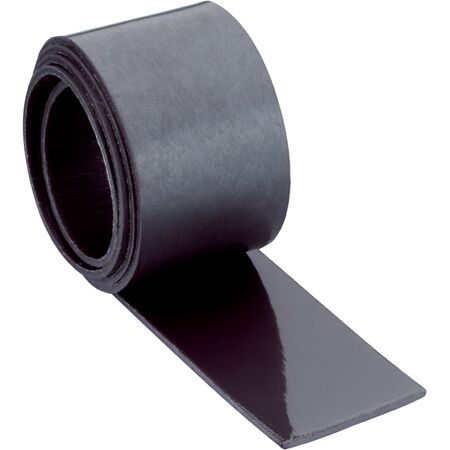

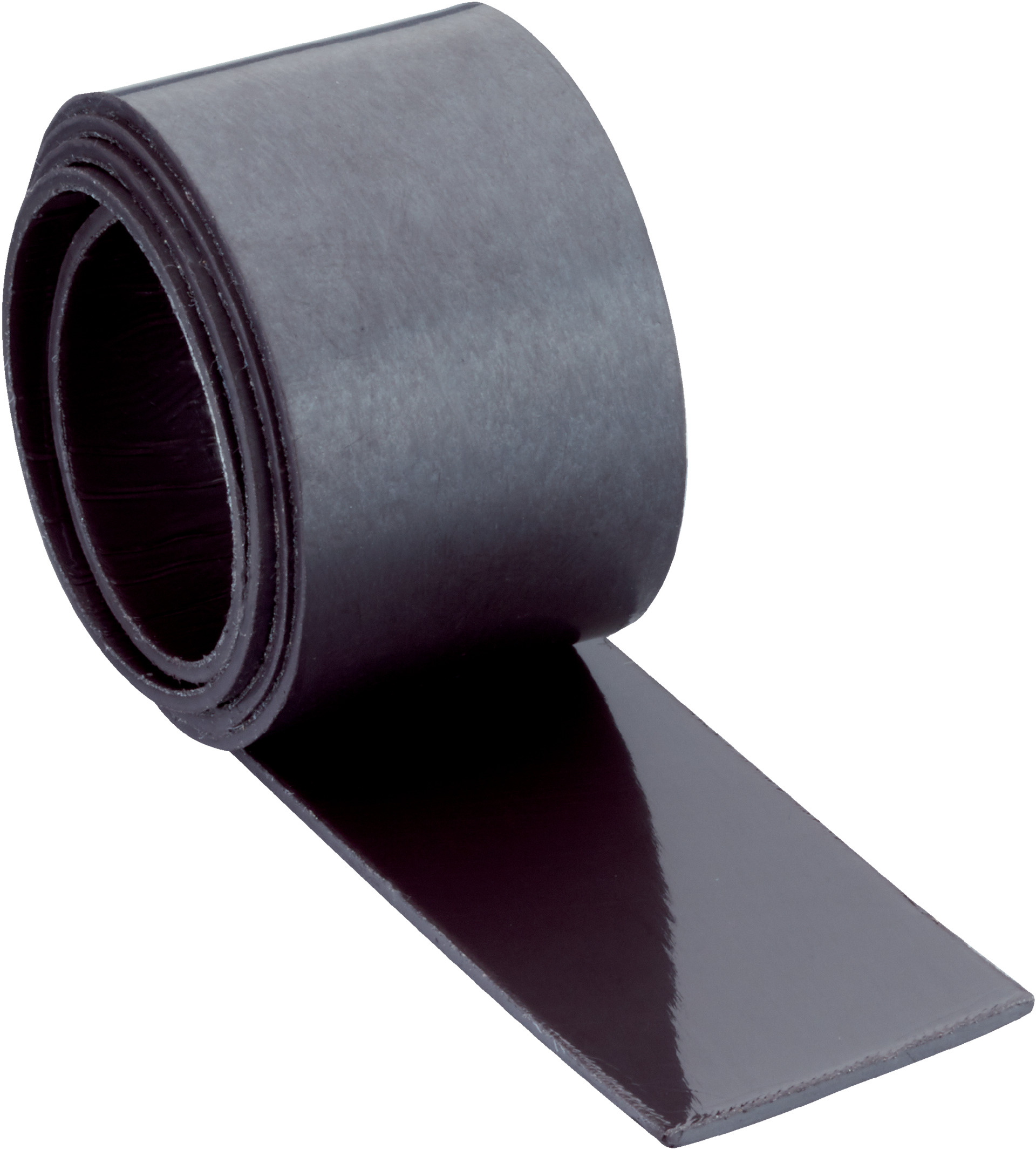

Product Name/Title: Curved Magnetic Tape | Self-Adhesive | Axial Magnetization | Minimum Bend Radius 2mm | by SICK
Brand: SICK
SKU: 5344198
Alternatively Known As: Curved Magnetic Tape, Self-Adhesive Magnetic Strip, Magnetic Sensor Tape
Technical Specifications
- Maximum energy product: ≥ 9 kJ/m³
- Remanence: < 220 mT
- Coercivity of magnetic flux density: ≥ 170 kA/m
- Coercivity of magnetic polarization: ≥ 280 kA/m
- Field line thickness via LS: 150 g
- Density: 3.7 g/cm³
- Magnetization: Axial
- Minimum bend radius: 2 mm
- Ambient operating temperature max.: ≤ +70 °C
- Radius: 1000 mm
- Section angle: 30°
- Dimensions (H x L x W): 1mm x 524mm x 25mm
- Weight: 0.1 kg
Key Features
- North pole on top orientation
- Self-adhesive backing for easy installation
- Axial magnetization
- Minimum bend radius of 2 mm
- Ambient operating temperature up to +70 °C
Professional Installation Requirements
- Installation should be performed by trained personnel to ensure proper adhesion and magnetic orientation for optimal performance.
Applications
- Industrial automation and sensor positioning
- Magnetic field detection and measurement
- Robotics and conveyor systems
- Magnetic encoding and identification
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Self-adhesive installation minimizes use of additional adhesives
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK warranty policy for details.
Available Now
The SICK Magnetic Tape Curved is available for immediate purchase, ideal for industrial automation and sensor applications.
