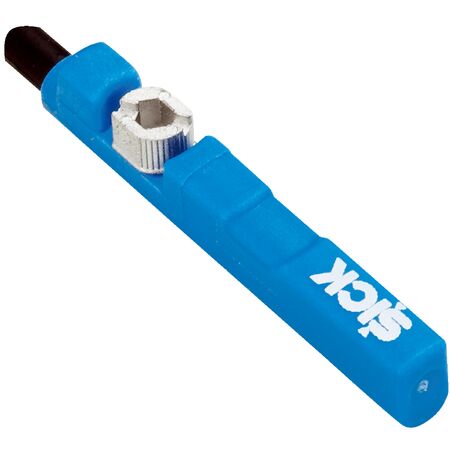

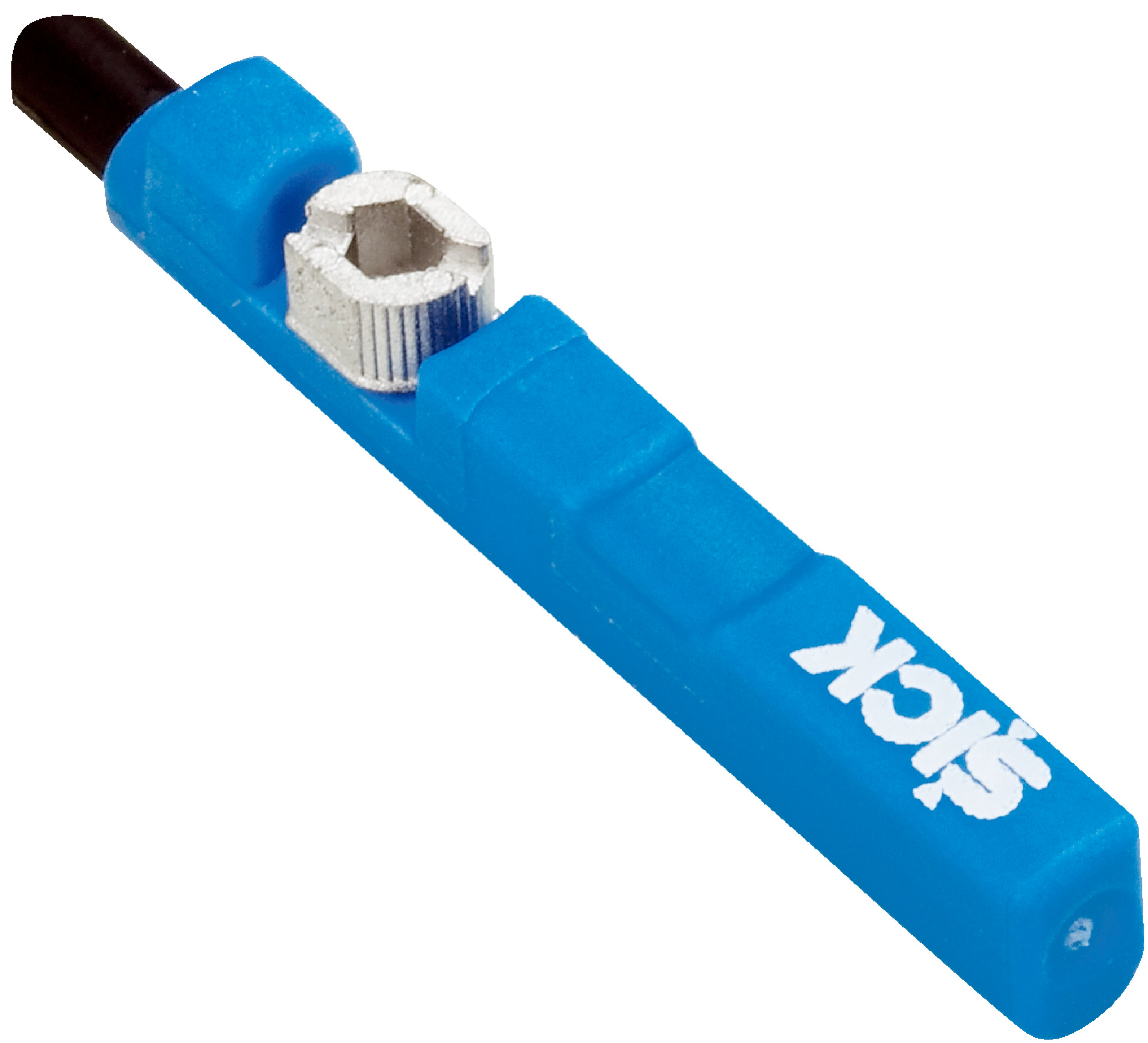

Cylinder Position Sensor MZC1-2V2NS-KR0 | IP68 Rated | NPN Output | 1000 Hz Switching Frequency | by SICK
The Cylinder Position Sensor MZC1-2V2NS-KR0 is designed for precise position sensing in industrial automation applications. With an IP68 rating for dust and water protection, this sensor features a high switching frequency of up to 1,000 Hz and an NPN output for reliable performance. Ideal for use with various cylinder adapters, it ensures durability and efficiency in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 24mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with various cylinder adapters
- NPN switching output with normally open (NO) function
- High switching frequency up to 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP68 for dust and water protection
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 8 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin plug, 0.3 m length, suitable for drag chain use
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and IP68 sealing for optimal performance.
Applications
- Industrial automation for position sensing on cylinders
- Use with SMC rail CDQ2, ECDQ2, round body, profile, and tie-rod cylinders
- Suitable for harsh environments requiring IP68 rated sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable plastic housing and PUR cable increase product lifespan reducing waste
- Low power consumption contributes to energy efficiency
- High reliability reduces replacement frequency and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZC1-2V2NS-KR0 sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
