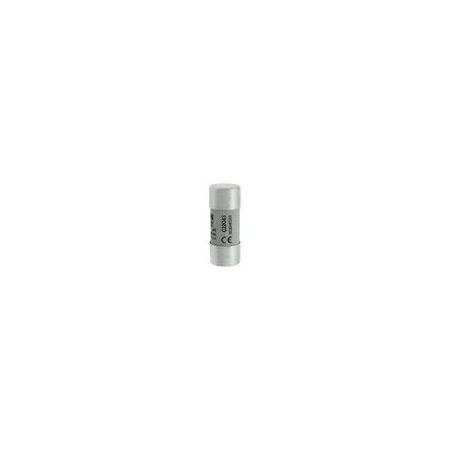

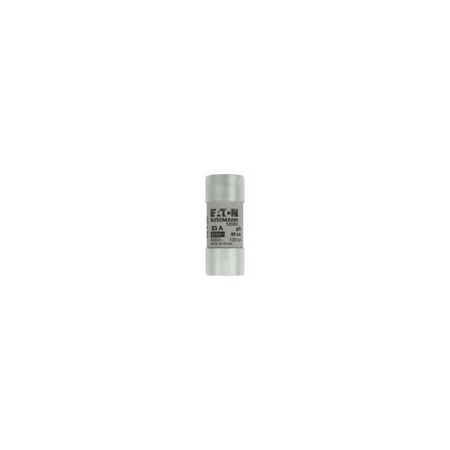

Cylindrical Fuse 22 x 58 mm | 63A Rating | 690V AC | 80 kA Breaking Capacity by Eaton
Cylindrical fuse rated at 63A and 690V AC, featuring an 80 kA breaking capacity—ideal for low voltage electrical circuit protection. Built for industrial and commercial applications, ensuring safety and compliance with IEC 60269 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylindrical Fuse 22 x 58 mm | 63A Rating | 690V AC | 80 kA Breaking Capacity by Eaton
Brand: Eaton
SKU: C22G63
Alternatively Known As: 22x58mm cylindrical fuse, 63A fuse, 690V AC fuse, gG fuse, low voltage fuse
Technical Specifications
- Amperage Rating: 63 A
- Voltage Rating: 690 V AC
- Breaking Capacity: 80 kA
- Utilization Category: gG (cable and equipment protection)
- Frequency Rating Max: 62 Hz
- Dimensions: 22.2 mm diameter x 58 mm length
- Compatible with CH22 Modular fuse holders
- Certifications: IEC 60269, CE Marked, GoST-R, RoHS Compliant
- Dimensions (H x L x W): 22mm x 58mm x 22mm
- Weight: 0.055 kg
Key Features
- Rated at 690 Volts AC and 63 Amps
- High breaking capacity of 80 kA for enhanced safety
- Class gG/gL utilization category suitable for cable and equipment protection
- Complies with IEC 60269 standards
- CE Marked, GoST-R, and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse holder compatibility.
Applications
- Low voltage electrical circuit protection
- Cable and equipment protection in industrial and commercial electrical systems
- Use with CH22 Modular fuse holders
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long service life reduces waste and replacement frequency
Warranty Information
Standard Eaton warranty applies; refer to Eaton's official warranty policy for details.
Available Now
The Eaton Cylindrical Fuse 22 x 58 mm 63A GG 690V AC is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
