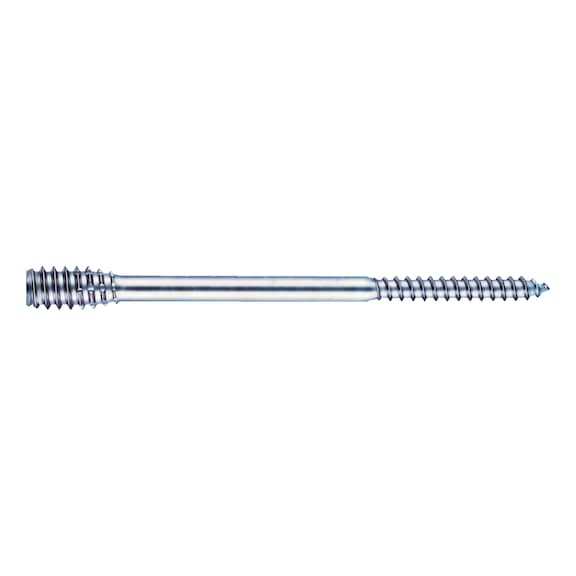

D-anchor Timber Screw | Galvanised Steel | Tension-Free Installation | 200 PCS | by Wurth
D-anchor timber screws are designed for reliable timber fixing, featuring a tension-free spaced installation for quick and efficient assembly. Made from galvanised steel, these screws are perfect for applications like window frames, door casings, and dry roof ridges, ensuring a strong hold without the need for time-consuming equalisation. Ideal for professional tradespeople, they offer higher load-bearing capacity and durability for construction and renovation projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: D-anchor Timber Screw | Galvanised Steel | Tension-Free Installation | 200 PCS | by Wurth
Brand: Wurth
SKU: 233163120
Alternatively Known As: D-anchor screw, timber fixing screw, wood screw, galvanised timber screw, dry ridge screw
Technical Specifications
- Nominal diameter: 6 mm
- Head thread diameter: 10.0 mm
- Length: 120 mm
- Head type: Threaded head
- Head diameter: 10.0 mm
- Head height: 22.0 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread form: Single start thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread length: 42.0 mm
- Head thread length: 22.0 mm
- Core diameter: 4.2 mm
- Core diameter of head thread: 7.5 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Max. screw-in angle: 90 degrees
- Min. screw-in angle: 45 degrees
- Suitable materials: Board ply wood (BSP), dowel, wood, derived timber product, softwood
- RoHS-compliant: Yes
- Dimensions (H x L x W): 22mm x 120mm x 10mm
- Weight: 1.2 kg
Key Features
- Tension-free spaced installation anchor
- Suitable for dry ridge fixing and attaching window frames, door casings, or substructures
- Material: Galvanised steel, blue passivated
- Time-saving with no need for time-consuming equalisation using spacing blocks
- Used as part of a system with an AW anchor cover cap
- Caps lie flat against the surface even when mounted at an angle of up to 20°
- Screw has a conical transition in the lower part of the head thread
- Frictionless screwing prevents pulling the slat even if inserted off-centre
- Can be combined with Jamo® screws when assembling substructures
- Higher load-bearing capacity and requires no subsequent readjustments
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct fixing and load-bearing performance.
Applications
- Spacing assembly
- Windows
- Kitchen
- Dry roof ridge
- Door
- Substructure
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel construction ensures durability and long service life, reducing waste
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Wurth offers a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth D-anchor Timber Screw 200 PCS is available now for immediate purchase. Ideal for timber fixing applications in construction and renovation projects.
