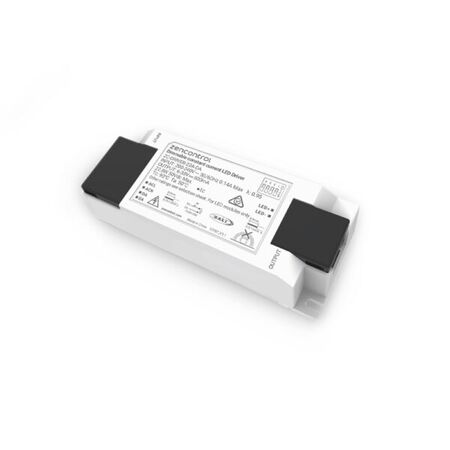

DALI-2 LED Driver Kit | 1.2m Flex & Plug | Constant Current 800mA | by Ektor
The DALI-2 LED Driver Kit features a 1.2m flex and plug, designed for seamless integration into commercial and residential LED lighting systems. With a constant current output set to 800mA, this driver ensures flicker-free dimming and high efficiency, making it ideal for DALI-2 compatible installations. Built for reliability, it operates within a wide temperature range and includes surge protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DALI LED Driver Kit, DALI-2 LED Driver, LED Driver with Flex and Plug, Constant Current LED Driver
Technical Specifications
- Driver Type: DALI DT6 LED Driver with DALI-2 DT6 support
- Input Voltage: 230Vac (-6%/+10%), 50 Hz
- Input Current: 0.14 A (varies by model)
- Power Factor: 0.95
- Driver Power: 22.8 W (model dependent)
- Driver Current: 250 mA to 1100 mA selectable
- Output Voltage Range: 6-38 V
- Surge Protection: 2kV L-N
- Standby Power: 0.5 W
- Operating Temperature: -20 to 50 °C
- Flex & Plug Length: 1200 mm
- Wiring Type: Flex and Plug (2 pin) and 2 wire flying lead (DALI)
- Short Term Light Modulation (PstLM): ≤ 1.0
- Stroboscopic Visibility Measure (SVM): ≤ 0.4
- Dimmable: Yes
- Driver Mode: Constant Current
- Dimensions (H x L x W): 40mm x 70mm x 150mm
- Weight: 0.3 kg
Key Features
- DALI DT6 LED driver with full DALI-2 DT6 support for flicker-free dimming
- Includes 1.2m 2 core flex and plug plus 2 core flying lead for easy installation
- Constant current driver mode with selectable driver currents from 250mA to 1100mA
- Wide input voltage range (216Vac - 253Vac) suitable for Australian mains
- High power factor of 0.95 and low standby power consumption (0.5W)
- Surge protection of 2kV between line and neutral
- Operating temperature range from -20°C to 50°C
- Low short term light modulation (PstLM ≤ 1.0) and stroboscopic visibility measure (SVM ≤ 0.4) for visual comfort
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Commercial and residential LED lighting control
- DALI-2 compatible lighting systems requiring flicker-free dimming
- Indoor lighting installations with constant current LED drivers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED driver reduces power consumption
- Low standby power minimizes energy waste
- Flicker-free dimming improves lighting quality and reduces eye strain
Warranty Information
Standard manufacturer warranty applies. Please refer to Ektor for specific warranty terms.
Available Now
The Ektor DALI-2 LED Driver Kit with 1.2m flex and plug is available for immediate purchase, ideal for commercial and residential LED lighting control applications.
