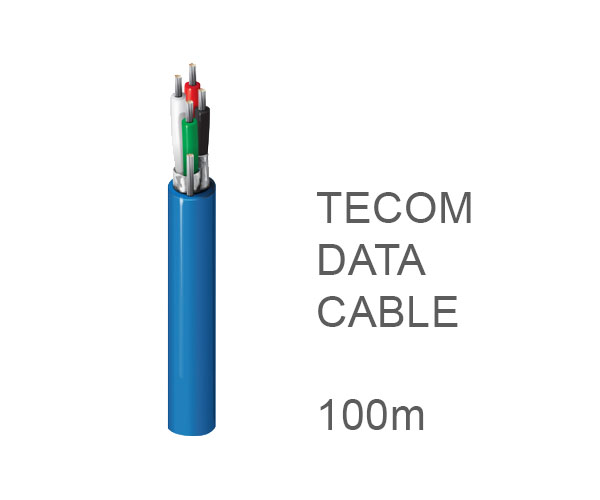

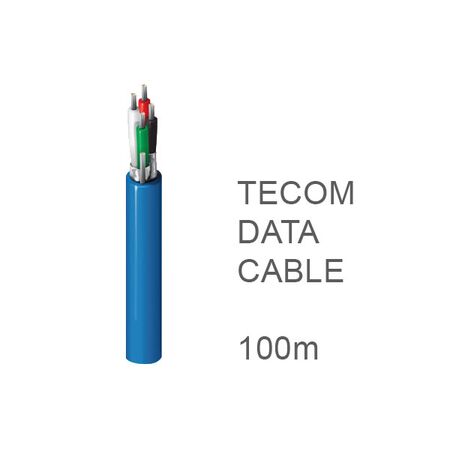

Data Cable Shielded 7x30 2 Pair 100m Tecom
Tecom shielded data cable features 7x30 construction and 2 pairs in a 100m length. Ideal for alarm and access control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tecom Data Cable, Shielded Security Cable, 2-Pair Alarm Cable, Access Control Cable
Technical Specifications
- Product Code: CAB120-100
- Cable Length: 100 m
- Number of Pairs: 2
- Conductor Construction: 7x30 stranded conductors
- Shielding: Shielded construction
- Application: Alarm and access control systems
- Conductor Size: Approximately 22 AWG equivalent, inferred from comparable 7x30 two-pair security cable
- Cable Type: Low-voltage data and control cable
- Packaging: Cable reel
- Estimated Cable Mass: Approximately 2.8 kg per 100 m, based on comparable 7x30 two-pair shielded cable; packaged weight estimated at 3.3 kg
- Dimensions Basis: Estimated reel dimensions because no Tecom product drawing was located
- Dimensions (H x L x W): 250mm x 250mm x 100mm
- Weight: 3.3 kg
Key Features
- Shielded construction helps reduce electromagnetic interference
- Two pairs provide four conductors for data, signalling and control circuits
- 7x30 stranded construction supports flexibility during installation
- 100 m reel is suited to longer alarm and access control cable runs
- Designed for Tecom security and access control installations
- Suitable for low-voltage indoor security-system wiring
Professional Installation Requirements
- Install in accordance with the security system manufacturer's wiring requirements and applicable Australian regulations. Where the cable forms fixed or concealed customer telecommunications cabling connected to a telecommunications network, installation must be performed by an appropriately registered cabler in accordance with applicable ACMA requirements. ([acma.gov.au](https://www.acma.gov.au/australian-cabling-standards?utm_source=openai))
Applications
- Intruder alarm systems
- Electronic access control systems
- Security panel-to-device connections
- Reader, keypad and controller wiring
- Low-voltage signalling and control circuits
Standards & Compliance
- AS/NZS 2201.1:2007 – relevant to intruder alarm system design, installation, commissioning and maintenance; product-specific cable compliance was not verified. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-2201-5-2008-117333_saig_as_as_245551/?utm_source=openai))
- AS/NZS IEC 60839.11.2:2019 – relevant to electronic access control system application and installation guidance; product-specific cable compliance was not verified. ([intertekinform.com](https://www.intertekinform.com/en-au/standards/as-nzs-iec-60839-11-2-2019-1172166_saig_as_as_2792844/?utm_source=openai))
- AS/CA S008:2020 and AS/CA S009:2020 may apply where the cable is used as customer telecommunications cabling; product-specific compliance was not verified. ([acma.gov.au](https://www.acma.gov.au/australian-cabling-standards?utm_source=openai))
Environmental Benefits
- Copper conductors and metallic shielding are recyclable at end of service life
- Shielding can reduce signal interference and associated installation rework
- Stranded construction supports serviceable, longer-life installations and may reduce replacement waste
Warranty Information
Tecom Challenger products supplied by Ness are covered by a five-year warranty from the date of manufacture. The published warranty does not specifically identify CAB120-100 cable, so confirmation of coverage for this accessory should be obtained from the supplier. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Tecom, Ness Corporation and authorised Australian security-system distributors. ([ness.com.au](https://ness.com.au/tecom-accessories?utm_source=openai))
