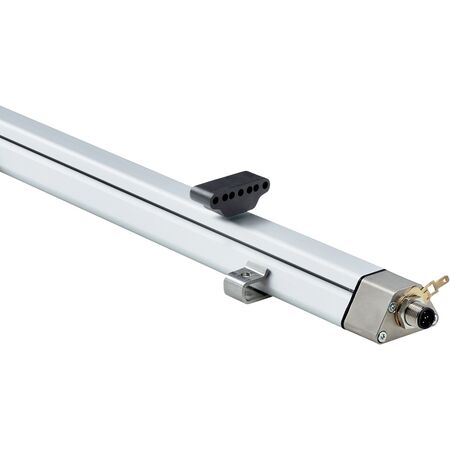

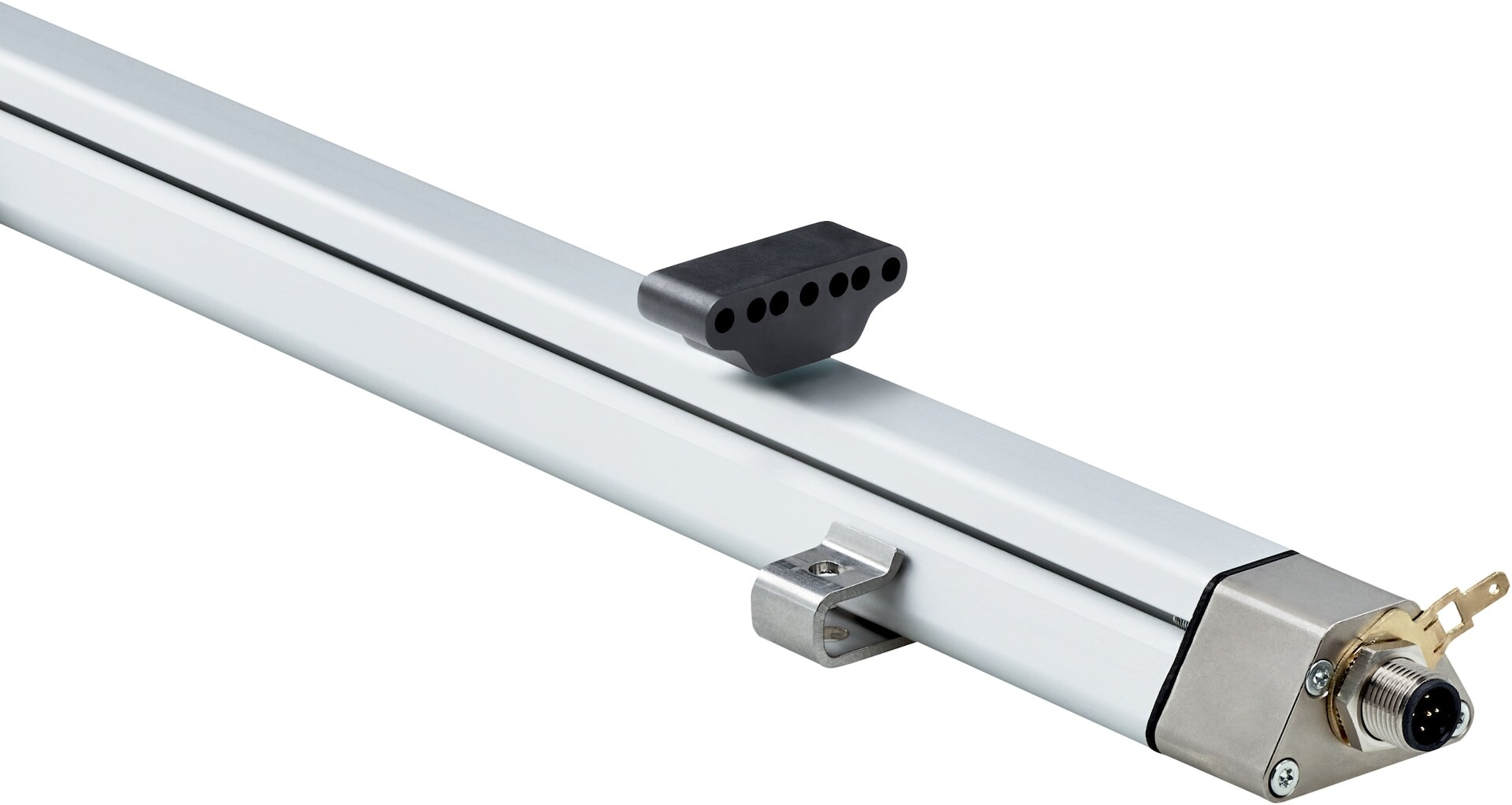

DAXLAN-0050BA480000D00 Linear Position Sensor | High Accuracy | IP65/IP67 Rated | by SICK
The DAXLAN-0050BA480000D00 Linear Position Sensor offers high accuracy with linearity of ≤ 0.03% F.S. and repeatability of ≤ ±20 µm, making it ideal for industrial automation and precise position measurement. With a robust anodised aluminum housing and IP65/IP67 rating, it withstands harsh environments while providing reliable analog output from 4 mA to 20 mA. Perfect for machine tool positioning and robotics, this sensor ensures optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 123 years
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 50 mm
- Null zone: 55 mm
- Damping zone: 63 mm
- Magnet type: Block magnet, 1 piece
- Measuring frequency (internal): < 2 ms
- Communication interface: Analog current output 4 mA to 20 mA
- Load resistance: 100 Ω to 500 Ω
- Connection type: Male connector, M12, 5-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Reverse polarity protection: Up to -30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Low Profile
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
- Vibration resistance: 8 g / 10–2000 Hz (IEC 60068-2-6)
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- High accuracy with linearity ≤ 0.03% F.S. and repeatability ≤ ±20 µm
- Measuring range of 0 mm to 50 mm
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- IP65 / IP67 rated for protection against dust and water
- Operating temperature range from -40 °C to +85 °C
- Analog current output signal from 4 mA to 20 mA
- Fast measuring frequency less than 2 ms
- Reverse polarity and over voltage protection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and assembly lines
- Process control systems requiring linear position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption with efficient analog output
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DAXLAN-0050BA480000D00 Analog Position Sensor is available for immediate purchase, ideal for industrial automation and precise position measurement applications.
