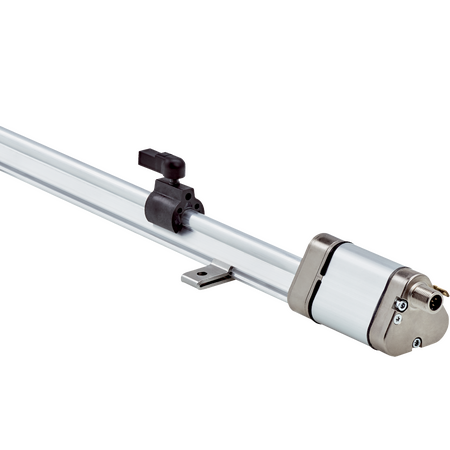

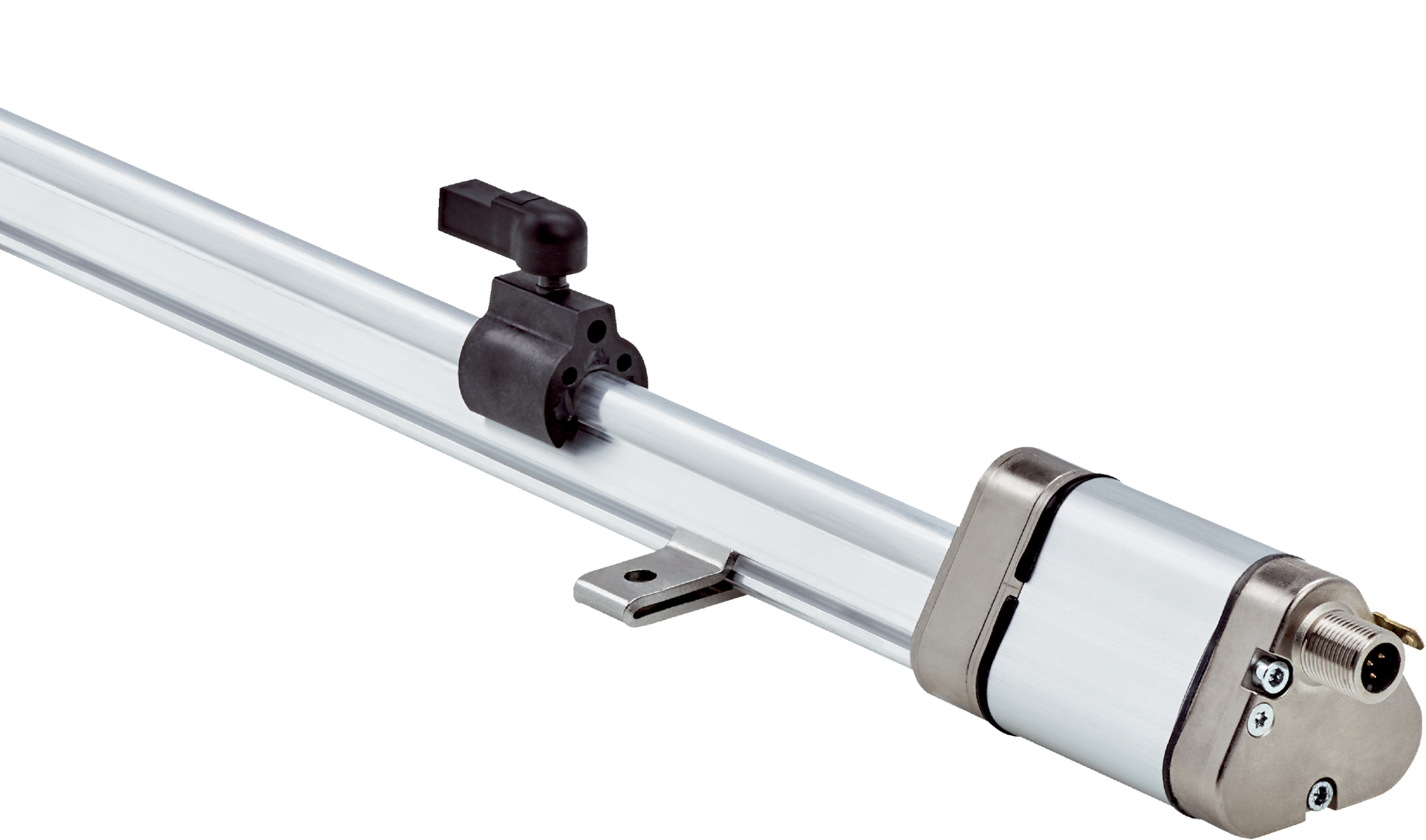

DAXSAN-0200SA040900E00 | Linear encoders
The SICK DAXSAN-0200SA040900E00 linear encoder offers precise analog position measurement with high repeatability and robust design, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXSAN-0200SA040900E00 | Linear encoders
Brand: SICK
SKU: 1133037
Alternatively Known As: Linear position sensor, Analog linear encoder, DAX Slider encoder, SICK position transducer
Technical Specifications
- Linearity: ≤ 0.02% F.S. (Minimum 60 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 200 mm
- Null zone: 25 mm
- Damping zone: 63 mm
- Magnet shape: Slide magnet
- Magnet travel speed: ≤ 10 m/s
- Measuring frequency (internal): < 2 ms
- Communication interface: Analog current output (4 mA to 20 mA)
- Number of signals: Two output signals (one normal, one inverted)
- Load resistance: 100 Ω to 500 Ω
- Connection type: Male connector, M12, 5-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Reverse polarity protection: Up to -30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Slider
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
- Vibration resistance: 15 g / 10 to 2000 Hz (IEC 60068-2-6)
- Dimensions (H x L x W): 20mm x 200mm x 50mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 200 mm
- Analog current output signal 4 mA to 20 mA
- Two output signals with one inverted signal
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 15 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and assembly lines
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient electronics
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXSAN-0200SA040900E00 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
