DBS36E-BBCM00360 | Incremental encoders

BRAND: SICK
SKU: 1062719
$394.60 List price: $496.00
+ −
30 Days Return Electricians Unlock Trade Access

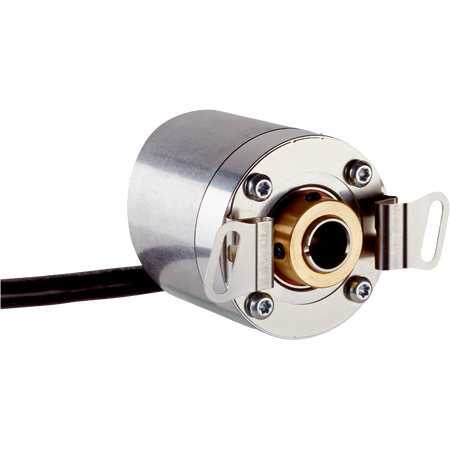

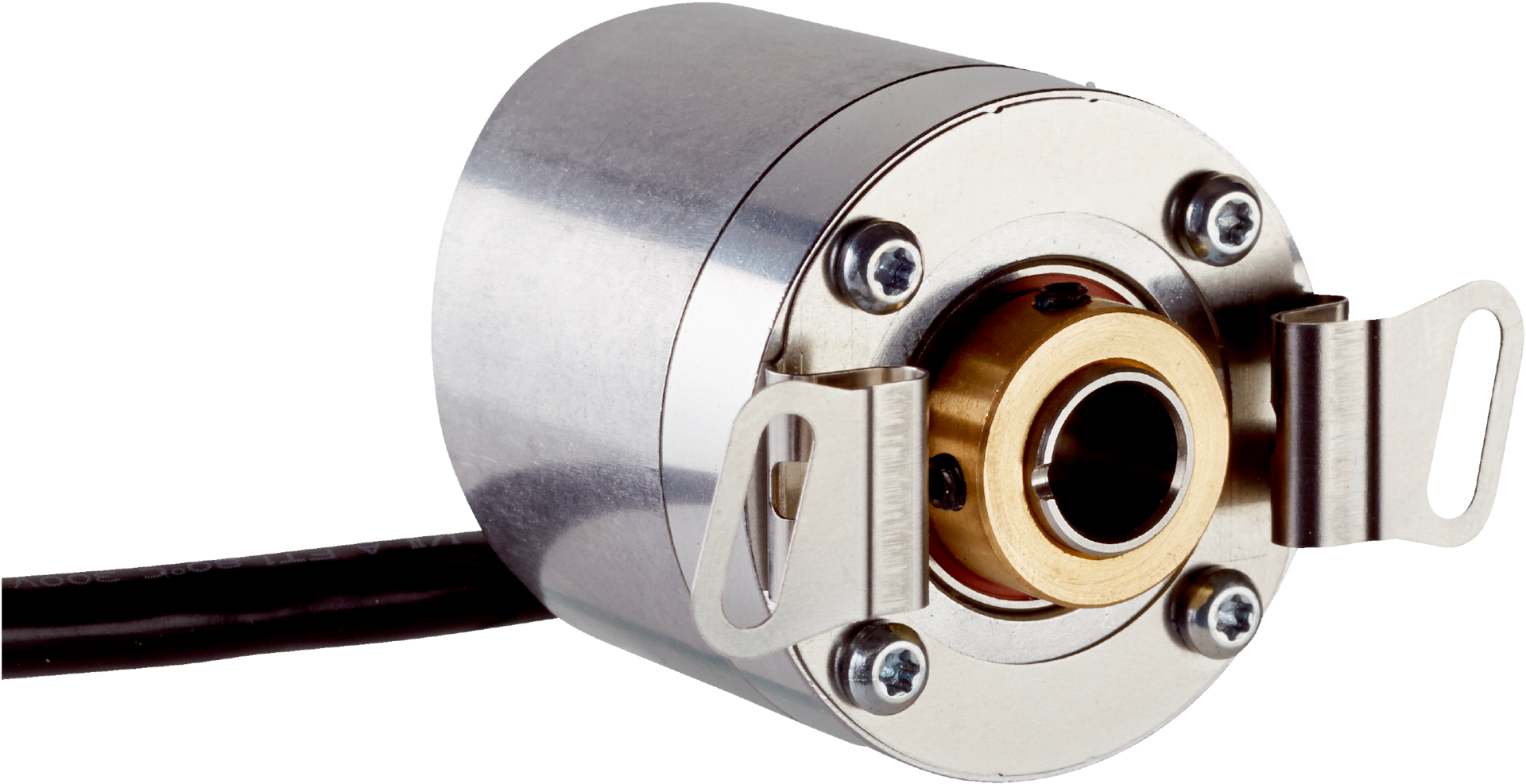

The SICK DBS36E-BBCM00360 is a high-performance incremental encoder featuring 360 pulses per revolution, robust aluminum housing, and IP65 protection, ideal for industrial automation and motion control applications.

Product Name/Title: DBS36E-BBCM00360 | Incremental encoders

Brand: SICK

SKU: 1062719

Alternatively Known As: Incremental rotary encoder, rotary position sensor, incremental shaft encoder, industrial encoder

Technical Specifications
  • Pulses per revolution: 360
  • Measuring step: 90° electric/pulses per revolution
  • Measuring step deviation: ±18°
  • Error limits: ±54°
  • Duty cycle: ≤ 0.5 ± 5%
  • Communication interface: Incremental TTL / RS-422
  • Number of signal channels: 6
  • Initialization time: < 3 ms
  • Output frequency: ≤ 300 kHz
  • Load current: ≤ 30 mA
  • Power consumption: ≤ 0.5 W (without load)
  • Connection type: Cable, 8-wire, universal, 5 m
  • Supply voltage: 7 to 30 V
  • Reference signal: 1, positioned at 90°, logically gated with A and B
  • Reverse polarity protection: Yes
  • Short-circuit protection: Yes
  • Mechanical design: Blind hollow shaft
  • Shaft diameter: 8 mm
  • Shaft material: Stainless steel
  • Flange and housing material: Aluminum
  • Cable material: PVC
  • Start up torque: +0.5 Ncm at 20 °C
  • Operating torque: 0.4 Ncm at 20 °C
  • Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
  • Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: 6,000 min⁻¹
  • Maximum operating speed: ≤ 8,000 min⁻¹
  • Moment of inertia of rotor: 0.8 gcm²
  • Bearing lifetime: 2 x 10^9 revolutions
  • Angular acceleration: ≤ 500,000 rad/s²
  • EMC compliance: EN 61000-6-2 and EN 61000-6-3 (class A)
  • Enclosure rating: IP65
  • Permissible relative humidity: 90% (no condensation)
  • Operating temperature range: –20 °C to +85 °C (–35 °C to +95 °C on request)
  • Storage temperature range: –40 °C to +100 °C
  • Shock resistance: 100 g, 6 ms
  • Vibration resistance: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 36mm x 60mm x 36mm
  • Weight: 0.15 kg
Key Features
  • 360 pulses per revolution with ±18° measuring step deviation
  • 6-channel incremental TTL/RS-422 communication interface
  • Robust blind hollow shaft design with 8 mm stainless steel shaft
  • High operating speed up to 8,000 min⁻¹
  • IP65 rated enclosure for protection against dust and water
  • Reverse polarity and short-circuit protection
  • Low power consumption ≤ 0.5 W without load
  • Operating temperature range from –20 °C to +85 °C
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
  • Industrial automation for precise position and speed measurement
  • Robotics and conveyor systems requiring incremental feedback
  • Machine tools and packaging machinery
  • General motion control applications
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption reduces energy usage
  • Durable materials and robust design extend product lifespan, reducing waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK DBS36E-BBCM00360 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
