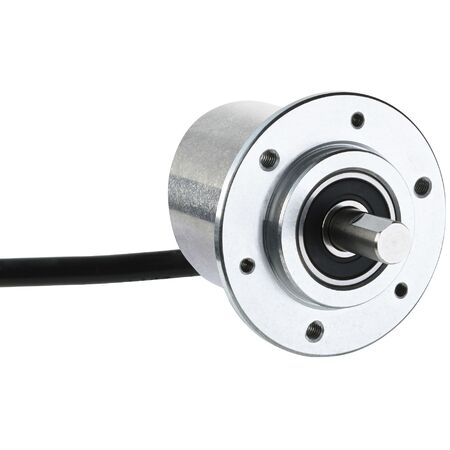

DBS50E-S5AJ02048 | Incremental encoders
The SICK DBS50E-S5AJ02048 incremental encoder offers high precision with 2,048 pulses per revolution, robust construction, and reliable performance for industrial automation and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS50E-S5AJ02048 | Incremental encoders
Brand: SICK
SKU: 1061085
Alternatively Known As: Incremental rotary encoder, rotary encoder 2048 PPR, SICK incremental encoder, industrial position encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±18° / pulses per revolution
- Error limits: ±54° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Operating current: ≤ 50 mA (without load)
- Connection type: Cable, 8-wire, 0.5 m length
- Supply voltage: 4.5 to 5.5 V
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 8 mm with flat
- Shaft length: 15.5 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Permissible shaft loading: 30 N axial, 50 N radial
- Operating speed: 6,000 min⁻¹ (max 8,000 min⁻¹)
- Moment of inertia of rotor: 0.65 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C (extended range on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.18 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Solid shaft with 8 mm diameter and flat for secure mounting
- Robust aluminum housing and flange for durability
- IP65 rated enclosure for protection against dust and water
- Short-circuit protected outputs
- Operating temperature range from -20°C to +85°C
- High maximum operating speed up to 8,000 min⁻¹
- Low start-up torque of 0.9 Ncm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and configuration for optimal performance and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling equipment
- Machine tool feedback systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS50E-S5AJ02048 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
