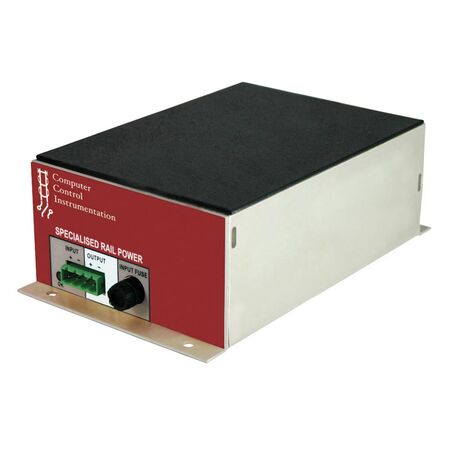

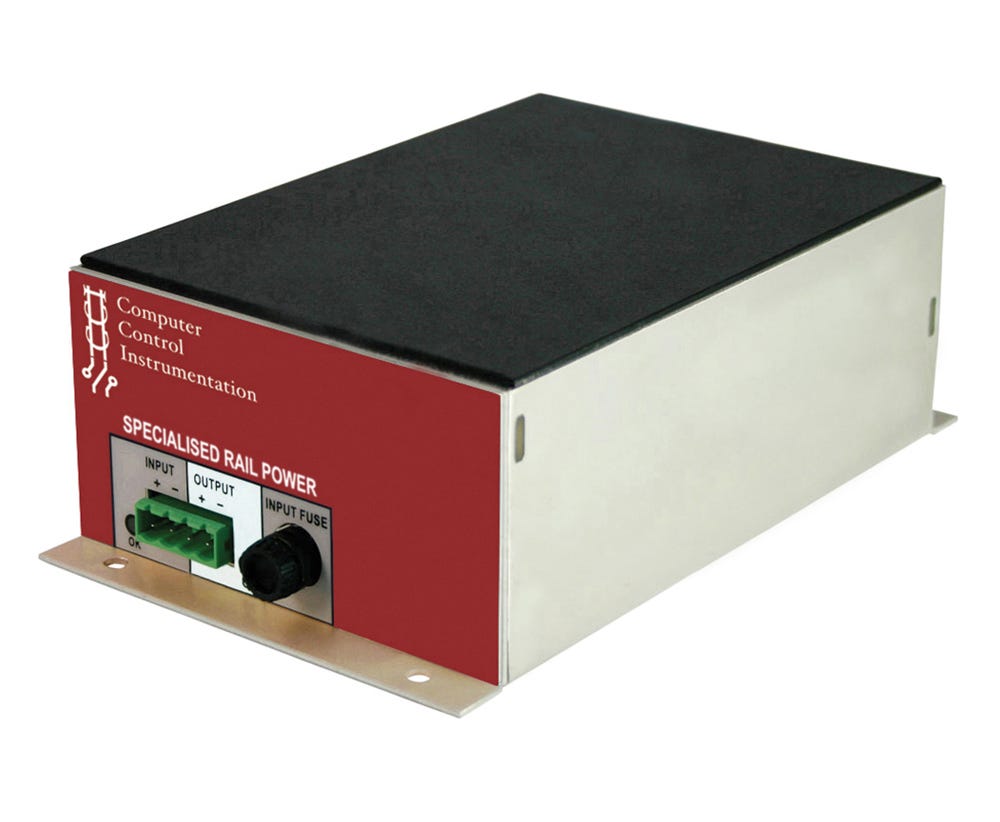

DC/DC 200W Converter | 53-140V Input | 13.6V Output | 15A Current | @EA of 1 | by Cabac
The DC/DC 200W Converter is designed for reliable power supply in locomotive and industrial applications, featuring a wide input voltage range of 53-140V DC and a stable output of 13.6V at 15A. With over 90% efficiency and a fanless convection cooled design, it ensures optimal performance in restricted airflow environments, making it ideal for renewable energy systems and railway applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DC/DC 200W Converter | 53-140V Input | 13.6V Output | 15A Current | @EA of 1 | by Cabac
Brand: Cabac
SKU: WR200E-13V6-15A
Alternatively Known As: DC/DC Converter 200W, Rail Power Supply 13.6V 15A, WR200E Power Supply
Technical Specifications
- Input Voltage Range: 53-140V DC (nominal 96V)
- Output Voltage: 13.6V DC
- Output Current: 15A
- Power Output: 200W
- Efficiency: >90%
- Cooling: Fanless convection cooled
- Compliance: EN50155 certified
- Operating Voltage Dips and Surges: 40V – 385V
- Digital trim circuit with non-volatile memory for output voltage adjustment
- LED Indicators: High intensity green LEDs for input and output status
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Compliance to EN50155 for railway applications
- Wide input voltage range: 53-140V DC (nominal 96V)
- Fanless convection cooled design for increased reliability
- Operates reliably in restricted airflow positions
- No external fins or ventilation ports to reduce dust ingress
- High efficiency over 90%
- Non-volatile memory digital trim circuit for accurate output voltage adjustment
- High intensity green LEDs indicating input and output status
Professional Installation Requirements
- Installation by a qualified electrical technician is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Locomotive power systems
- Renewable energy DC systems
- Industrial DC power supply applications requiring wide input voltage range
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
- Complies with EN50155 Railway applications - Electronic equipment used on rolling stock
Environmental Benefits
- Fanless design reduces energy consumption and maintenance waste
- High efficiency reduces power loss and heat generation
- No ventilation ports minimize dust ingress, extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty terms.
Available Now
The Cabac WR200E 200W DC/DC Rail Power Supply is available for immediate purchase, ideal for locomotive and industrial DC power applications.
