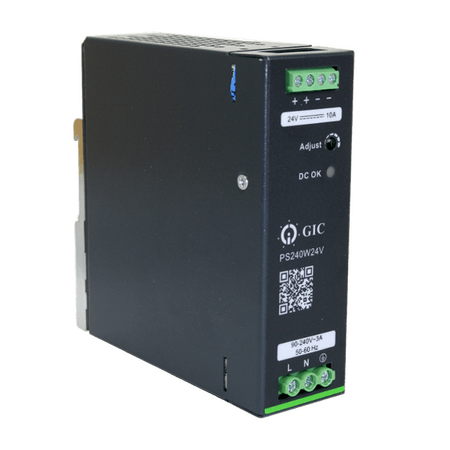

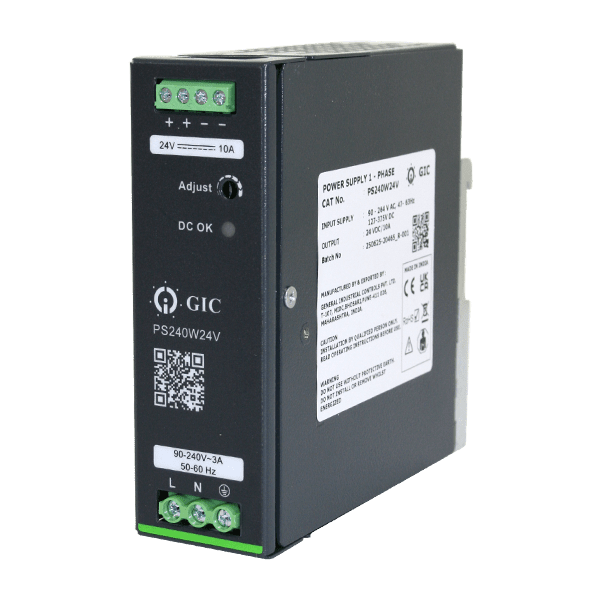

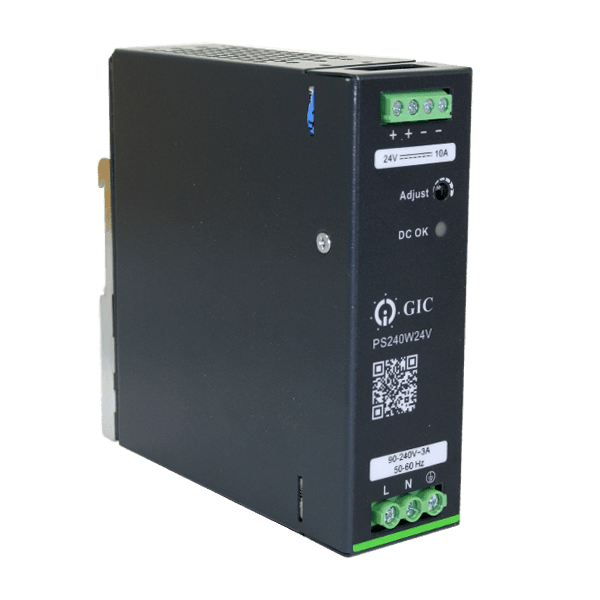

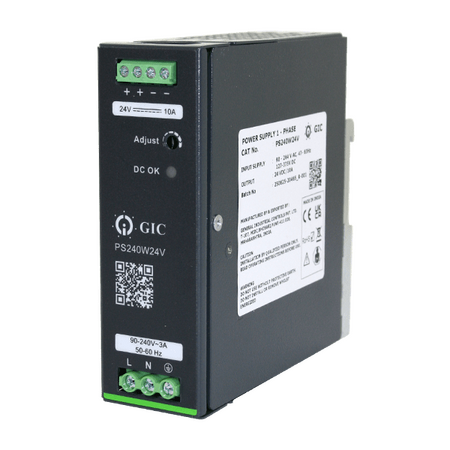

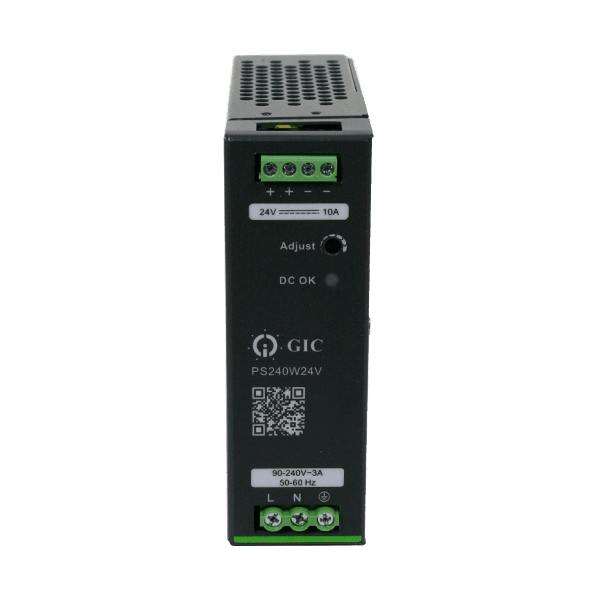

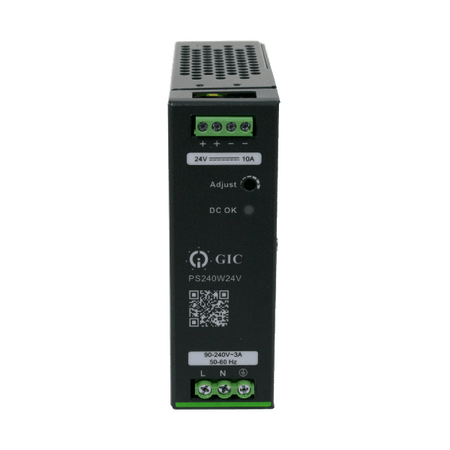

DC Power Supply 230VAC/24VDC 240W 10A Eltech

BRAND: Eltech
SKU: PS240W24V
$200.80 List price: $267.80
+ −
30 Days Return Electricians Unlock Trade Access
Eltech DC power supply features 230VAC input, 24VDC 10A output and 240W rating. Ideal for switchboard and control panel applications.

Alternatively Known As: PS240W24V, 240 W DC Power Module

Technical Specifications
  • Input Voltage: 90–264 V AC / 127–375 V DC
  • Frequency Range: 47–63 Hz
  • Efficiency: 90 %
  • Input Current: 1.3 A @ 230 VAC; 2.5 A @ 115 VAC
  • Inrush Current: 40 A @ 230 VAC; 20 A @ 115 VAC
  • No‑Load Power Consumption: < 2 W @ 230 VAC
  • Output Voltage: 24 V DC (adjustable 22–28 V DC)
  • Output Current: 10 A
  • Output Power: 240 W
  • Line & Load Regulation: ± 0.5 %
  • Output Ripple & Noise: ≤ 150 mV
  • Start‑Up Time: 500 ms @ 230 VAC
  • Rise Time: 20 ms @ 115 VAC (100 % load)
  • Hold‑Up Time: 30 ms @ 230 VAC
  • Dynamic Response: ± 10 % @ 10–100 % load, slew 2.5 A/µs
  • Overvoltage Protection: 28.8–33.6 V shut‑off, requires restart
  • Output Overload Protection: 105–120 %, auto‑recovery
  • Overtemperature Protection: output shutdown with restart
  • Short‑Circuit Protection: hiccup mode, auto‑recovery
  • Input Fuse: internal 4 A 250 VAC
  • Recommended MCB: 6–16 A C curve
  • Protection Class: Class I with protective earth
  • Operating Temperature: –30 °C to +70 °C
  • Storage Temperature: –40 °C to +85 °C
  • Overvoltage Category: II
  • Pollution Degree: 2
  • Connection: input 0.25–6 mm², output 0.25–4 mm²
  • Dimensions (H x L x W): 0mm x 0mm x 0mm
  • Weight: 0.62 kg
Key Features
  • Wide AC/DC input range for flexible installation
  • Compact 240 W output with 10 A continuous current
  • Comprehensive protection suite (OVP, OLP, SCP, OTP)
  • High efficiency (90 %) reduces energy waste
  • Auto‑recovering fault protection modes ensure reliability
  • EMC‑friendly design suitable for industrial environments
Applications
  • Switchboards and control panels requiring reliable 24 V DC supply
  • Industrial automation setups powering contactor coils, actuators
  • Replacement or upgrade power module in machinery
Standards & Compliance
  • Likely required to comply with AS/NZS 61010 for industrial electrical equipment (not explicitly stated)
Environmental Benefits
  • High efficiency reduces energy consumption and lowers heat generation
  • Auto‑recover features reduce downtime and waste from faulty replacements
Warranty Information

Subject to Eltech’s 7‑Year Warranty when installed by a licensed electrician per terms & conditions. Warranty applies with proof of purchase and installation per manufacturer’s instructions. ([eltech.com.au](https://eltech.com.au/terms-conditions/?utm_source=openai))

Available Now

Available through authorised Australian distributors; check local Eltech stockists.
