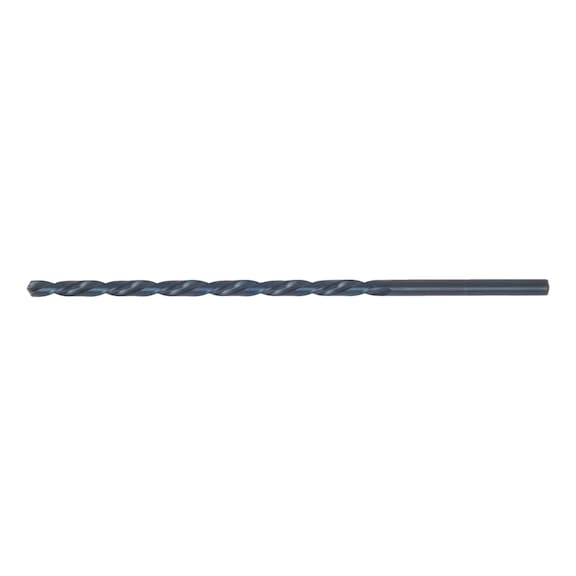

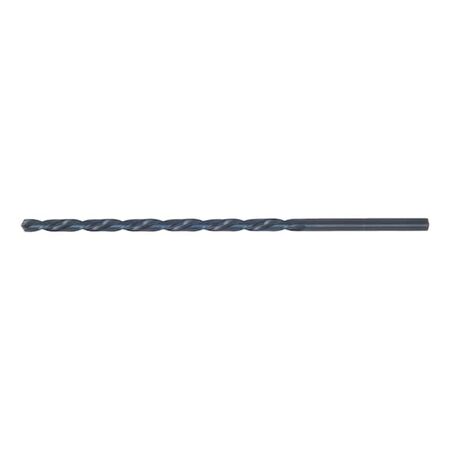

Deep Hole Drill Bit 6.5mm | Extra-Long HSS Design | Self-Centring Tip | Vaporised Finish | by Wurth
The 6.5mm deep hole drill bit is engineered for precision drilling in steel and cast iron, featuring a self-centring tip and a durable high-speed steel (HSS) construction. Ideal for professional machining, this extra-long drill bit ensures accurate holes up to 1000 N/mm² tensile strength, making it perfect for various materials including plastics and tool steels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Deep Hole Drill Bit 6.5mm | Extra-Long HSS Design | Self-Centring Tip | Vaporised Finish | by Wurth
Brand: Wurth
SKU: 625400650
Alternatively Known As: Deep hole drill bit, Extra-long steel drill bit, HSS deep hole drill, Steel drilling bit 6.5mm
Technical Specifications
- Diameter: 6.5 mm
- Length: 220 mm
- Chip flute length: 150 mm
- Shank diameter: 6.5 mm
- Shank style: Cylindrical
- Cutting material: High-Speed Steel (HSS)
- Tip angle: 118 degrees
- Surface finish: Vaporised
- Suitable for tensile strength up to 1000 N/mm²
- Standard drilling depth: DIN 1869 / 20xD
- Self-centring tip for accurate drilling
- Dimensions (H x L x W): 220mm x 220mm x 6.5mm
- Weight: 0.2 kg
Key Features
- Extra-long deep-hole drill bit designed for steel and cast iron
- High-speed steel (HSS) cutting material for durability
- Self-centring tip with 118-degree angle for precise drilling
- Vaporised surface for enhanced performance
- Suitable for a variety of materials including general structural steels, tool steels, cast iron, brass, and plastics
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless drills by trained operators.
Applications
- Drilling deep holes in steel up to 1000 N/mm² tensile strength
- Suitable for cast iron and composite materials such as plastic profiles with steel core
- Use with cordless screwdrivers, pedestal drilling machines, milling/drill centers, and drills
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable high-quality materials reduce the need for frequent replacements, minimizing waste
- Efficient drilling reduces energy consumption during machining
Warranty Information
Wurth standard warranty applies, covering manufacturing defects.
Available Now
The Wurth extra-long steel deep-hole drill bit 6.5mm is available for immediate purchase, ideal for professional machining and industrial drilling applications.
