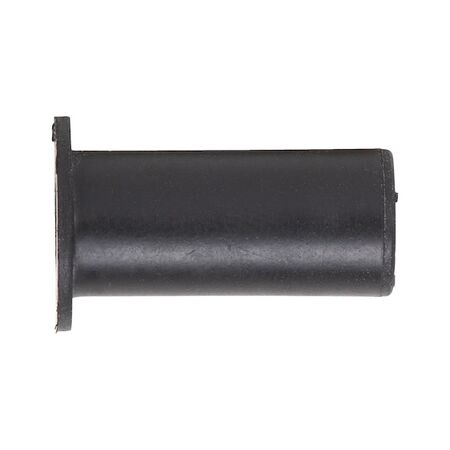

Detachable Electrically Insulating Rivet | Vibration Dampening | Ozone-Resistant | by Wurth
The Detachable Electrically Insulating Rivet is designed for reliable fastening in automotive and industrial applications. With its vibration and noise-damping features, this rivet ensures a secure connection while providing electrical insulation. Ideal for trained professionals, it offers an air and moisture-tight seal, making it perfect for various materials and environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Detachable Electrically Insulating Rivet | Vibration Dampening | Ozone-Resistant | by Wurth
Brand: Wurth
SKU: 9487560
Alternatively Known As: Insulating Rivet, Vibration Dampening Rivet, Electrical Insulation Fastener, Detachable Rivet Connector
Technical Specifications
- Thread type x nominal diameter (D): M6
- Head diameter (d1): 16.0 mm
- Outer diameter (d2): 12.7 mm
- Length (l1): 26.7 mm
- Head height (k1): 2.0 mm
- Min./max. grip range (s1): 6.4-11.5 mm
- Material: Chloroprene with brass insert
- Max. drill hole diameter: 13.0 mm
- Min. tightening torque: 0.8 Nm
- Min./max. tightening torque: 0.8-1 Nm
- Min. processing temperature: -30°C
- Max. processing temperature: 80°C
- Shore A hardness: 60
- Head type: Dome head
- Dimensions (H x L x W): 26.7mm x 16mm x 16mm
- Weight: 0.1 kg
Key Features
- Detachable rivet connection with electrical insulation
- Vibration and noise-damping function
- Dual function as thread carrier or fastener
- Air and moisture-tight connection
- Ozone-resistant
- Suitable for various materials
- Installation temperature range from -30°C to +80°C
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with rivet fastening techniques to ensure proper torque and secure fastening.
Applications
- Fastening metal and plastic connections in automotive, industrial, and construction applications
- Suitable for use in blind or pocket holes
- Ideal for vibration and noise damping fastening solutions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Ozone-resistant properties enhance longevity and reduce environmental waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Detachable Electrically Insulating Rivet Connection is available for immediate purchase, ideal for industrial and automotive fastening applications.
