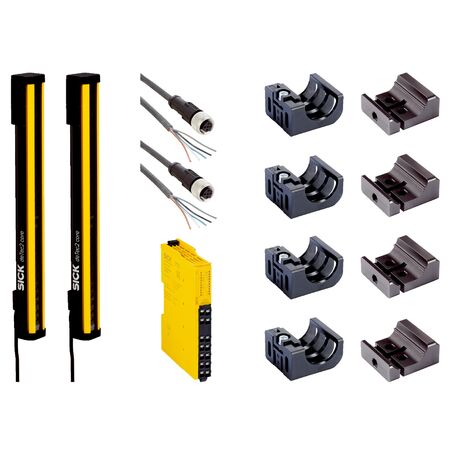

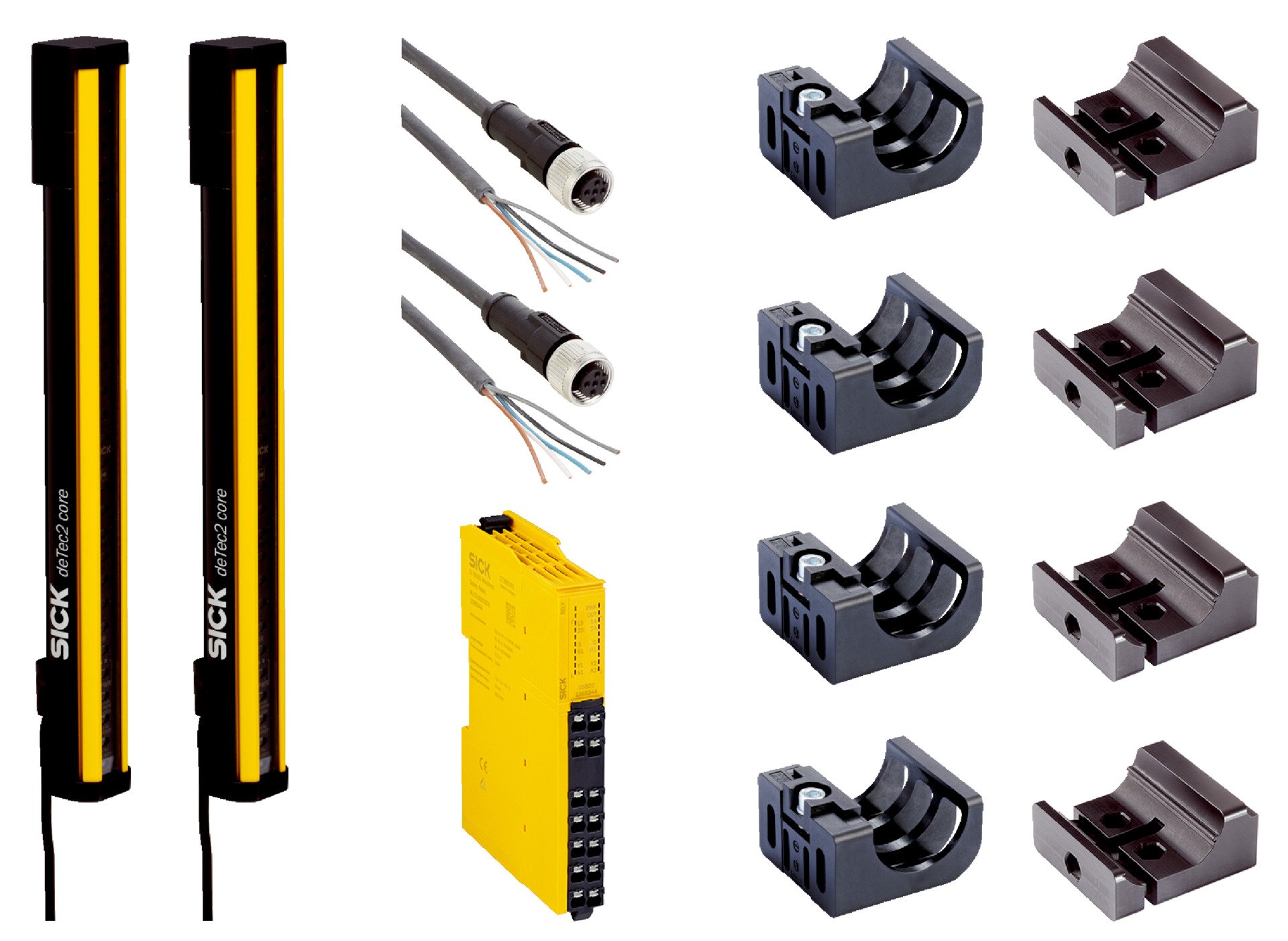

deTec2 Core Set 14/300 | 14mm Resolution | 300mm Protective Field | Optical Synchronization | by SICK
The deTec2 Core Set 14/300 is a cutting-edge safety light curtain designed for industrial safety applications. With a 14mm resolution and a protective field height of 300mm, it ensures reliable machine safeguarding and personnel protection. Built for durability with an aluminum housing and IP65/IP67 ratings, this sensor operates efficiently in harsh environments, making it ideal for factories and manufacturing facilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state switching voltage: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wavelength: 850 nm near-infrared (NIR), invisible light
- Dimensions (H x L x W): 300mm x 200mm x 50mm
- Weight: 1.5 kg
Key Features
- Resolution of 14 mm with a scanning range of 10 m
- Protective field height of 300 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Housing made of aluminum extruded profile
- Protection class III with IP65 and IP67 enclosure rating
- Operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance of 5 to 150 Hz
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy-efficient operation with low power consumption
- Reliable safety reduces risk of accidents and associated environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK deTec2 Core Set 14/300 is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
