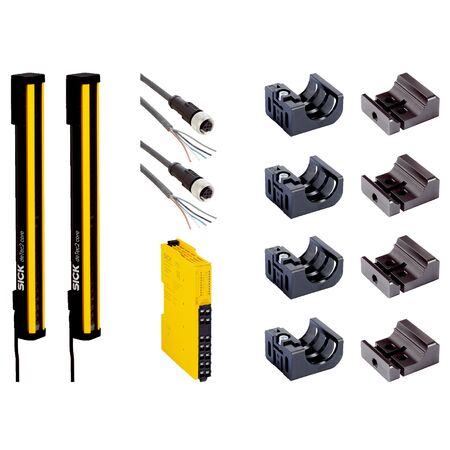

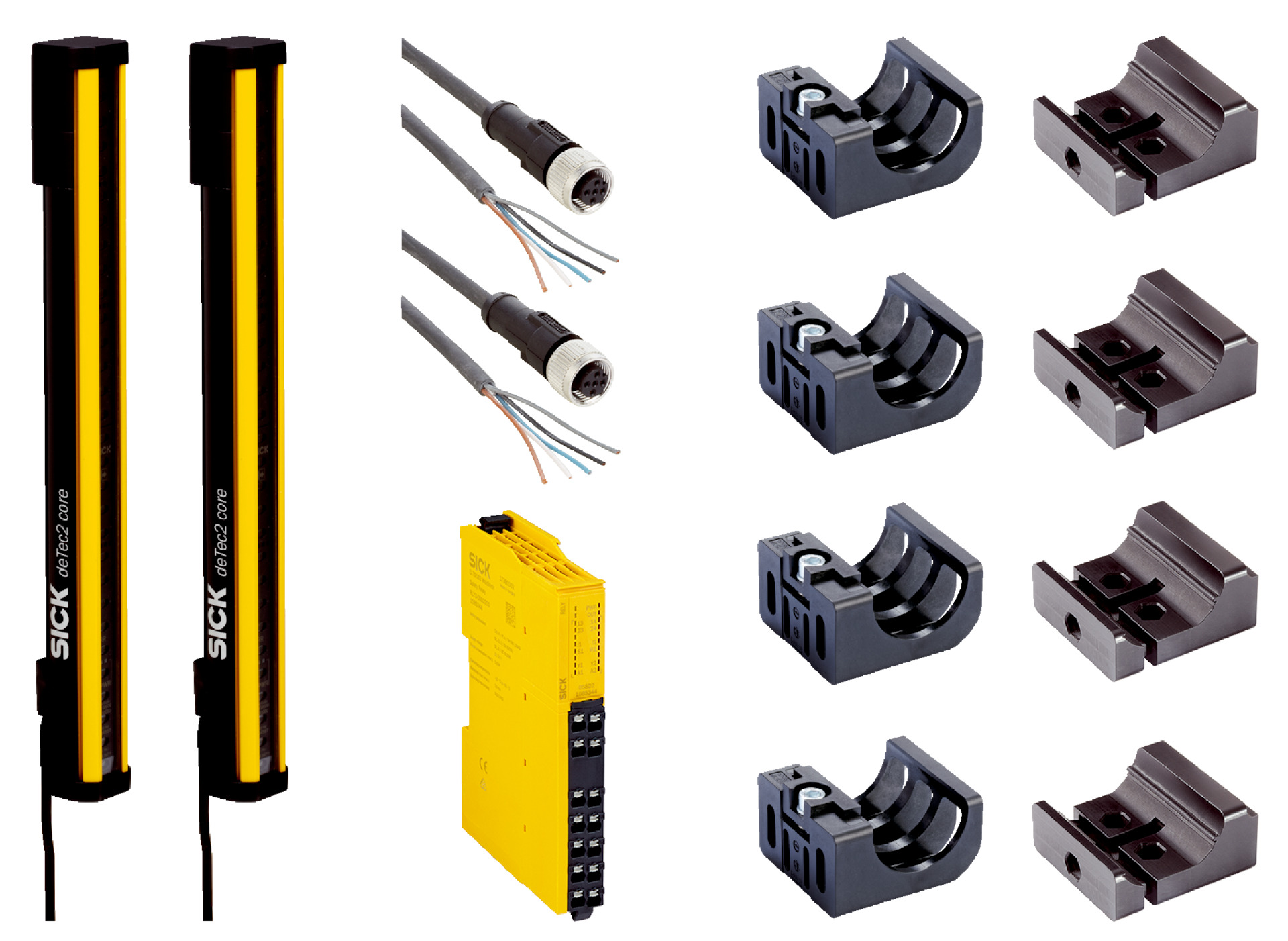

deTec2 Core Set 30/1350 | 30mm Resolution | 15m Scanning Range | IP65 & IP67 Rated | by SICK
The deTec2 Core Set 30/1350 is a cutting-edge safety light curtain designed for industrial applications, featuring a 30mm resolution and a scanning range of 15m. With a protective field height of 1,350mm and no blind zones, it ensures optimal machine safeguarding and perimeter guarding. Built for reliability, it operates in temperatures from -30°C to +55°C and boasts a robust aluminum housing with high protection ratings of IP65 and IP67.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in event of fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state switching voltage: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), wavelength 850 nm
- Dimensions (H x L x W): 1350mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 1,350 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High protection rating of IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance of 5 to 150 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding and perimeter guarding
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK deTec2 Core Set 30/1350 is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
