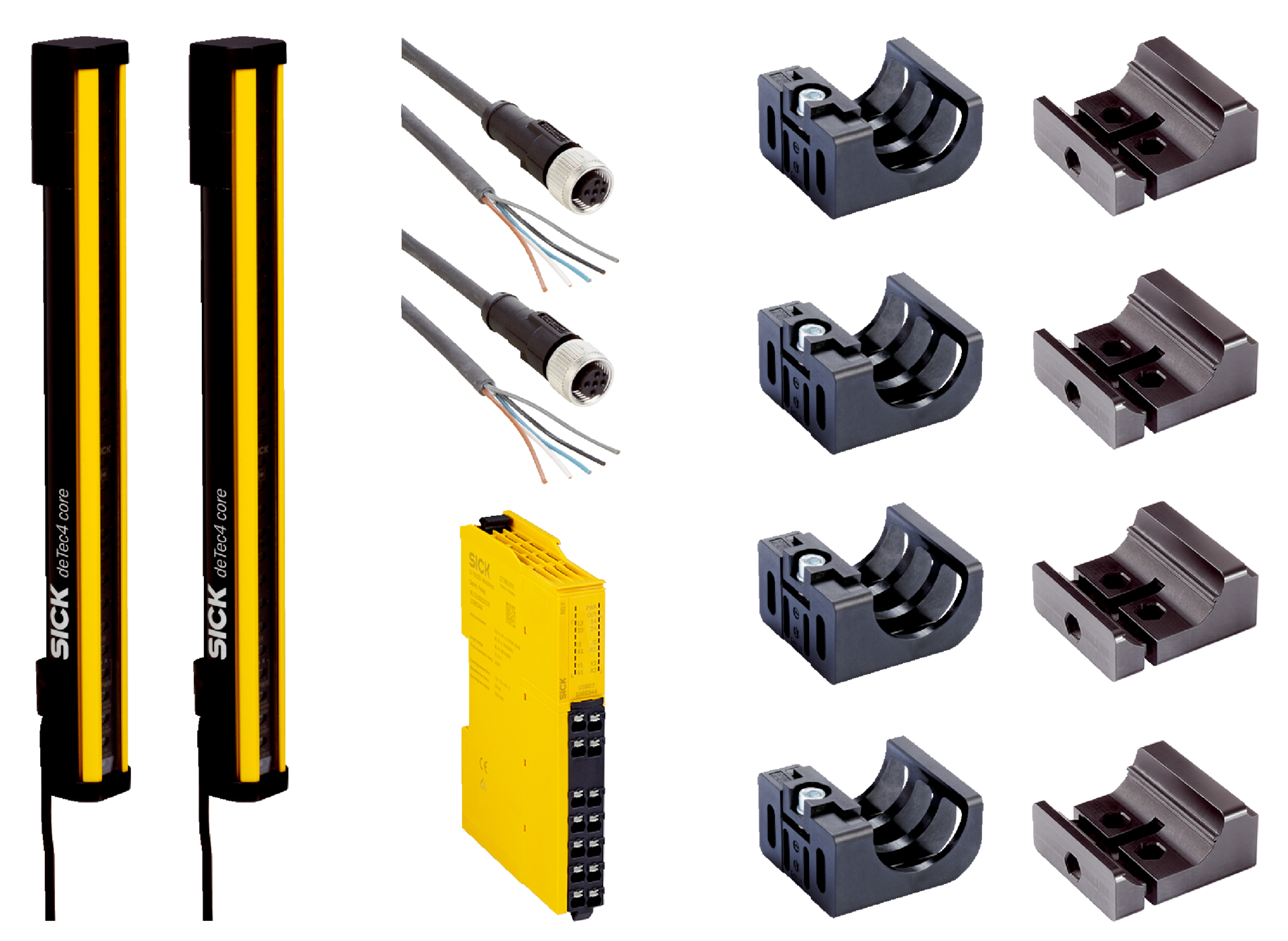

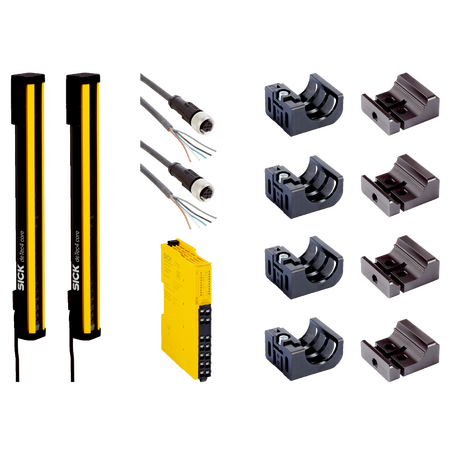

deTec4 Core Set 14/1350 | Safety light curtains
The SICK deTec4 Core Set 14/1350 safety light curtains provide reliable and precise protection for industrial environments, featuring a 14 mm resolution, 10 m scanning range, and robust IP65/IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: deTec4 Core Set 14/1350 | Safety light curtains
Brand: SICK
SKU: 1062903
Alternatively Known As: Safety light curtain, industrial safety sensor, machine safety light barrier, optical safety sensor
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), wavelength 850 nm
- Dimensions (H x L x W): 1350mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 14 mm for precise detection
- Scanning range up to 10 m
- Protective field height of 1,350 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High protection rating IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock and vibration resistant
Professional Installation Requirements
- Professional installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in normal industrial environments requiring safety light curtains
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK deTec4 Core Set 14/1350 safety light curtains are available for immediate purchase, ideal for industrial safety applications requiring high reliability and precision.
