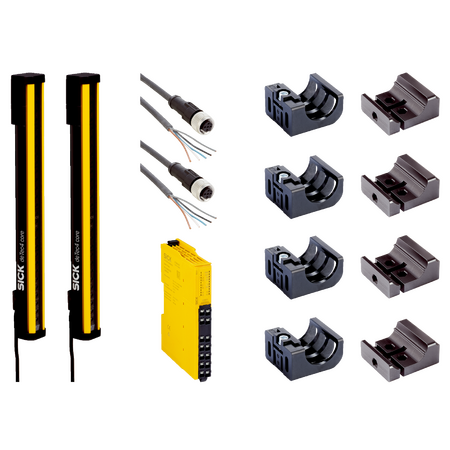

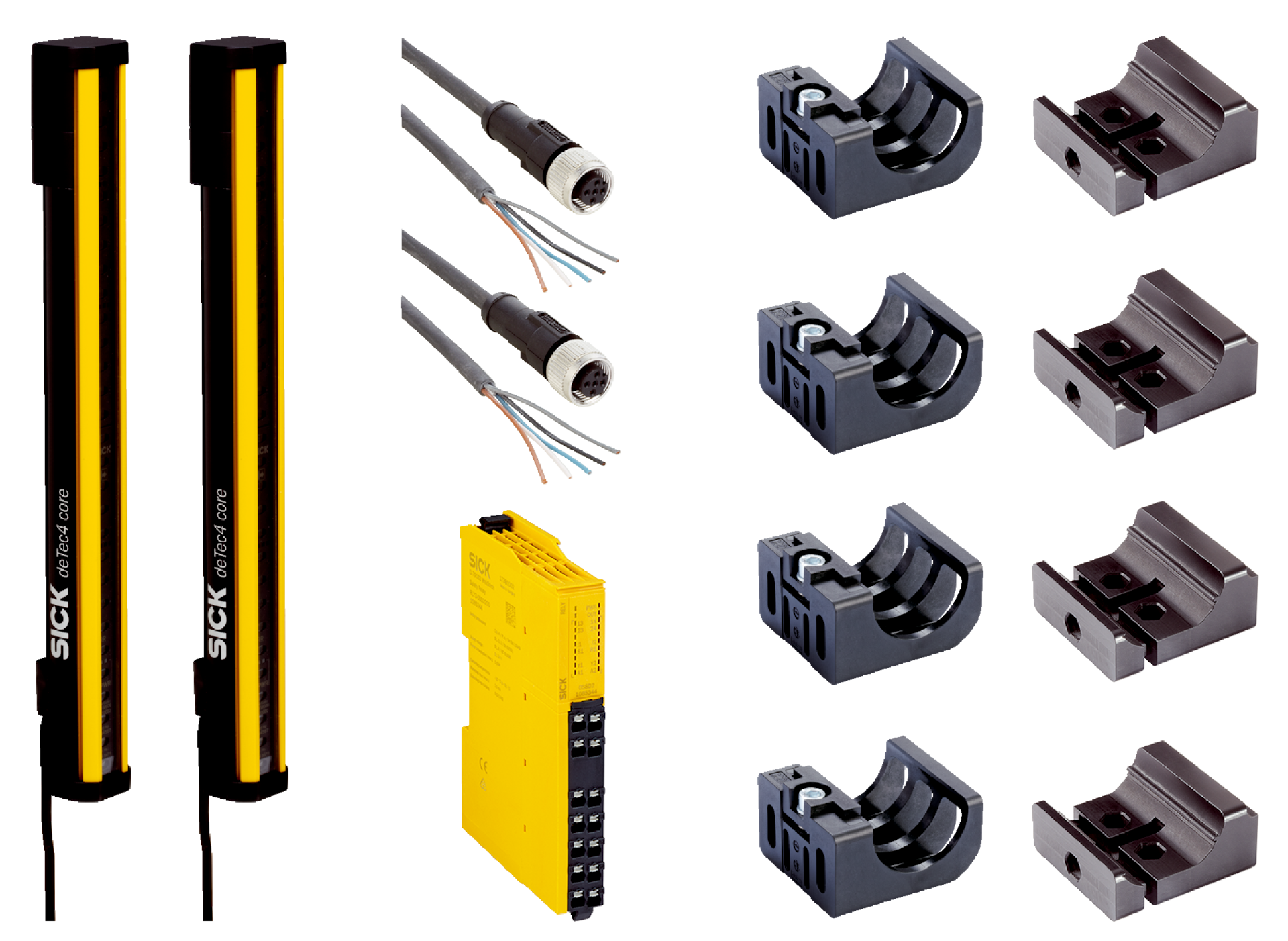

deTec4 Core Set 30/750 | Safety light curtains
The deTec4 Core Set 30/750 safety light curtains by SICK provide high-performance industrial safety with a 30 mm resolution and 750 mm protective field height, ideal for normal industrial environments requiring SIL 3 and PL e safety levels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: deTec4 Core Set 30/750 | Safety light curtains
Brand: SICK
SKU: 1062912
Alternatively Known As: Safety light curtain, industrial safety sensor, machine safety light barrier, optical safety curtain
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm with bend radius >12x cable diameter stationary, >15x flexible
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Current-carrying capacity per OSSD: ≤ 300 mA
- Wave length: 850 nm near-infrared (NIR), invisible light
- Dimensions (H x L x W): 750mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 30 mm with a protective field height of 750 mm
- Scanning range up to 15 m with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Housing made from durable aluminum extruded profile
- Protection class IP65 and IP67 for harsh environments
- Operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection in normal industrial environments
- Use in areas requiring high safety integrity and performance levels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing supports long product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The deTec4 Core Set 30/750 safety light curtains by SICK are available for immediate purchase, ideal for industrial safety applications in normal industrial environments.
